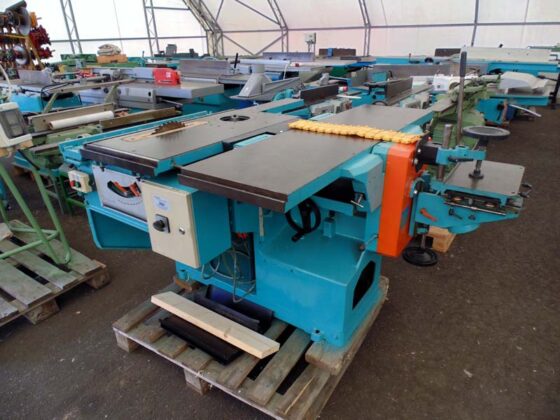

Combined machine FELDER

Felder BF5 41 represents the ultimate combined machine for professional woodworking. This powerful system combines five functions in one compact housing. It therefore effectively saves space in your workshop.
Specifically, this copy was produced in Austria in 1990. Furthermore, the machine operates on a standard three-phase voltage of 380 volts. Three powerful electric motors of 3 kW each reliably drive all working units. Massive and stable tables provide maximum safety during work operations. The machine provides superior precision, reliability and longevity in operation.

Combined machine FELDER

1Combined machine FELDER – Specification of working units:

1. Working unit: Jointer (Abrichter).

First of all, the powerful planer enables perfect straightening and preparation of wooden surfaces.
Planing width: 410 mm.
Table length: Exceptional 1550 mm for perfect guidance of long pieces.
Drive: Special 3.0 kW electric motor.

2. Work unit: Thicknesser (Dicht).

The precise thicknesser quickly reduces the material to the exact and desired dimension.
Maximum width: 410 mm.
Passing height: From 3 to 200 mm.
Capacity: Reliably cuts even the hardest types of wood.

3. Working unit: Circular saw (Disc saw).

In addition, the powerful circular saw with sliding table guarantees completely clean and accurate cuts.
Leaf diameter: From 150 to 300 mm.
Saw blade speed: 4800 rpm.
Shaft: 30 mm diameter.
Saw tilt: The axis of the circular saw smoothly tilts from 90 to 45 degrees.

4. Work unit: Spindle moulder (Milling machine).

At the same time, the router provides flexibility for making different profiles and grooves.
Spindle diameter: 30 mm.
Operating speeds: 3800 – 6100 – 7800 revolutions per minute.
Maximum tool: Diameter up to 270 mm.
Table dimensions: Spacious table measuring 950 x 455 mm.
Milling tilt: The spindle has the ability to tilt for angular profile milling.

5. Work unit: Drill (Mortiser) and formatter.

Finally, the handy drill attachment quickly makes precise holes and plugs.
Mobility: The handles allow easy three-dimensional movement of the table.
Sliding Table: An extremely precise aluminum table makes it easy to format records.
Cutting length: The length of 1240 mm allows easy cutting of larger formats.
Angle stop: The tilt ruler on the table is quickly set at the desired angle.

Combined machine FELDER is located in Mačvanska Mitrovica, Žarka Vucinića street 32 b (part of the city of Sremska Mitrovica), Serbia. The machine is in good condition and you can test it in operation. Transportation of the machine is carried out at the client’s expense, and after purchasing from our company, the carpenter machine will be loaded onto the client’s vehicle free of charge. “Apocalypse” LLC has over 2,500 used machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden crates of the Corali brand. «Apocalypse» LLC offers you complete lines for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet. Be our guests, and let’s work together for mutual benefit.
