Multirip saw 5289-24.

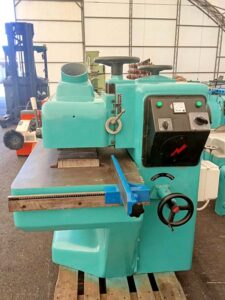

The COSMEC SM 250/120 is a robust, industrial single-axis machine with crawler drive, designed for longitudinal cutting of boards and prisms in the woodworking industry.
Machine design and capabilities
This robust industrial ripsaw cuts lumber along the grain. The Cosmec model processes timber prisms with high geometric precision. Heavy cast-iron frames absorb structural vibrations during operation.

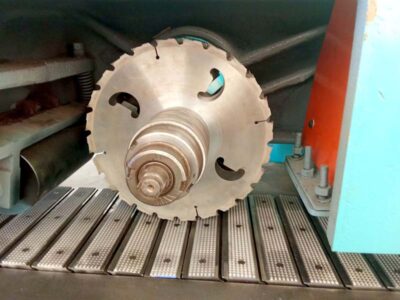

The machine features a single arbor holding multiple circular blades. Spacers separate these saw discs to determine final slat widths. The unit handles workpieces up to 120 millimeters thick.
Feed system and motor power

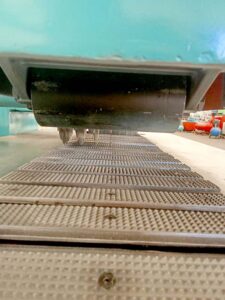

A wide tracks-and-chain conveyor pulls raw boards through. Toothed steel plates prevent wood from slipping during traction. Operators vary the feeding speed from 4 to 40 meters weekly.

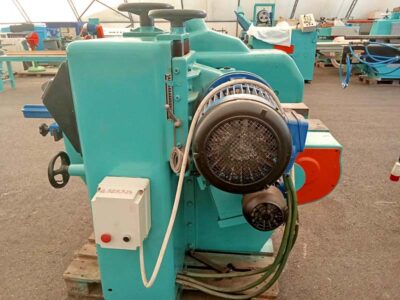

The strong three-phase motor delivers up to 30 kilowatts. This electric drive provides sufficient torque for dense hardwood. An automatic pump lubricates the internal guide rails continuously.
Safety measures and pre-purchase Inspection
Anti-kickback fingers protect the operator from flying timber debris. Buyers must inspect the heavy transport carpet before purchasing. Worn chain links degrade performance and require expensive replacements. Check the main shaft bearings for radial play and smoothness. Unbalanced rotation ruins saw teeth and causes wavy cuts.
Multirip saw 5289-24 … Technical specifications:
Saw blade diameter: up to 300 mm.
Shaft diameter: 60 mm.
Maximum cutting height: 120 mm.
Track width: 250 mm.

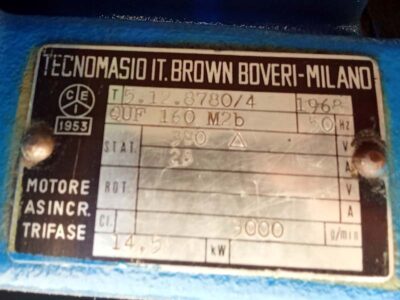

Engine power: 14.5 KW (20 HP), speed 3000 rpm.
Brand: COSMEC, model SM 250/120.
Dimensions of the work table: 1460 x 650 mm.
Weight: about 1800 kg.
Machine dimensions: 1770 x 1400 x 1460 mm.
Used, imported from Italy.
Multirip saw 5289-24 is located in Mačvanska Mitrovica, street Žarka Vučinića 32B (part of the city of Sremska Mitrovica), Serbia. The machine is in very good condition and can be tested in operation. Transport is at the client’s expense, and this multi-blade saw will be loaded into the client’s vehicle free of charge, after the purchase in our company. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. You can see and try all the machines in the halls of the company. The machines are mostly made in Italy, made of cast steel. We offer complete lines for the production of wooden crates of the Corali brand. Complete line for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
