Radial drawbar saw OMGA.

The professional radial arm saw OMGA represents a premium pull-cut saw with a strong arm. Renowned Italian brand Omga designed this model – Radial 900, for maximum cutting accuracy. The stable cast iron construction successfully dampens vibrations and guarantees a perfect cut.

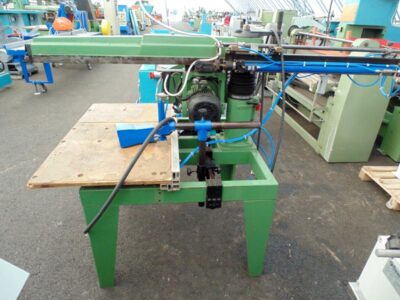

Radial drawbar saw OMGA

Radial drawbar saw OMGA – Main Technical Features

Feature Specification
Drive and clamps The machine features a pneumatic stroke and two pneumatic material clamps.
Saw diameter The maximum diameter of the saw blade reaches up to 400 mm.
Spindle shaft The diameter of the spindle shaft measures exactly Ø 30 mm.
Cutting height (90°) The maximum cutting height at a right angle reaches 125 mm.
Cutting height (45°) The maximum cutting height at a 45° angle reaches 85 mm.
Cutting length The total stroke is 900 mm with an effective cut of 650 mm.
Motor power The main electric motor develops a power of 5 HP or 3.7 kW.
Operating speed The saw blade rotates at a speed of 3000 rpm.
Dimensions and weight The overall size is 1060 x 1190 x 1625 mm with a weight of 368 kg.

Key Advantages and Functionality

Exceptional stability: The massive cast base guarantees complete accuracy even at maximum cutting depths.

Pneumatic system: The integrated pneumatic stroke and automatic clamps provide maximum safety and speed during operation.

Italian quality: The Omga Radial 900 model offers legendary durability in heavy working conditions. This used machine was imported from Italy.

Location and Terms of Purchase

Radial drawbar saw OMGA is located in Mačvanska Mitrovica, ” target=”_blank”>Žarka Vučinića street 32B (part of the city of Sremska Mitrovica), Serbia. The machine is in excellent condition and you can test it in operation. Transport is at the customer’s expense, and this drawbar saw for wood will be loaded into the customer’s transport vehicle free of charge, after the purchase has been made in our company. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. You can see and test all the machines in the halls of the company. The machines are mostly Italian-made, cast. We offer complete lines for the production of wooden crates of the Corali brand. Complete line for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
