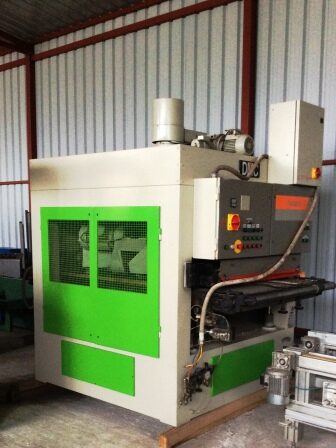

Sanding machine DMC.
Model: Rotosand 110.
Machine overview and application
Specifically, this specialized model excels at denibbing and sanding profiled components. It easily handles solid wood, MDF panels, and veneered surfaces. Furthermore, the machine delivers a perfectly consistent finish across complex shapes. Therefore, window manufacturers and door producers widely use this equipment.
Key working units
First, the machine features a unique rotating brush system called Rotosand. This main unit combines rotary movement with rapid transverse oscillation. Consequently, the abrasive bristles reach every single groove and recess. In addition, separate sanding rollers can process flat surface areas.
Sanding machine DMC – Main technical specifications
Working width: The heavy-duty conveyor belt measures 1100 mm across.
Brush configuration: Multiple cross-running abrasive brush aggregates perform the sanding.
Variable speed: Operators can electronically adjust the transport and brush speeds.
Vacuum table: A powerful vacuum system holds short or small workpieces securely.
Rotary, with 4 brushes that are coated with sandpaper and that rotate.
The grinding angle of the brush is fixed, and the rotation is double.
Minimum processing thickness: 5 mm.
Maximum processing thickness: 150 mm.
Conveyor motor power: 2 hp.
Feed speed: up to 16 mt/min.
Motor power of rotating brushes: 2 hp or 3 hp, brush rotation speed: 890 or 1270 rpm.
Platform rotation speed with brushes: 15 or 75 rpm.
Brush diameter (all four): 300 mm.
Dust collector motor power: 7.5 HP.
Sanding machine DMC weight: 2750 kg.
Used, imported from Italy.
Sanding machine DMC is located in Mačvanska Mitrovica, Žarka Vucinića street 32 b (part of the city of Sremska Mitrovica), Serbia. The machine is in good condition and you can test it in operation. Transportation of the machine is at the client’s expense, and after purchasing from our company, the panel sander will be load onto the client’s vehicle free of charge. “Apocalypse” LLC has over 2,500 used machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden crates of the Corali brand. «Apocalypse» LLC offers you complete lines for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet. Be our guests, and let’s work together for mutual benefit.
