Stapler Corali M-22

Stapler Corali M-22.

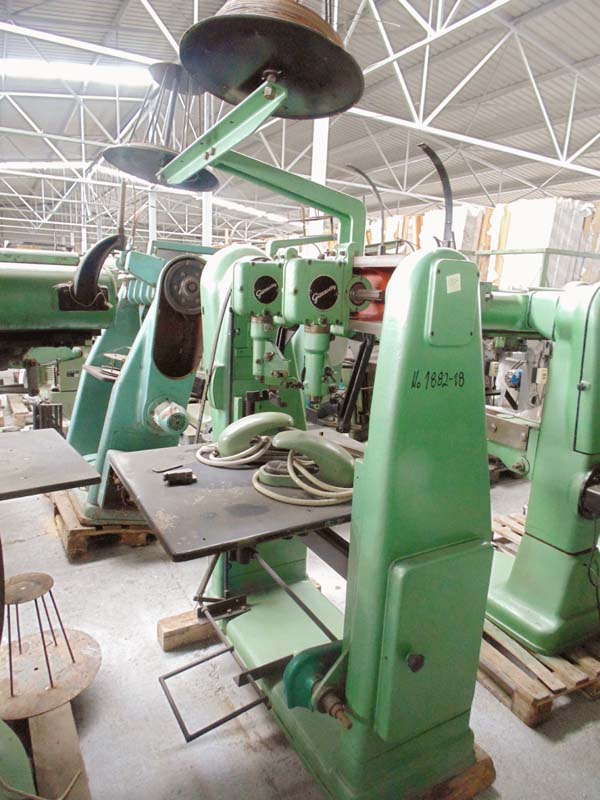

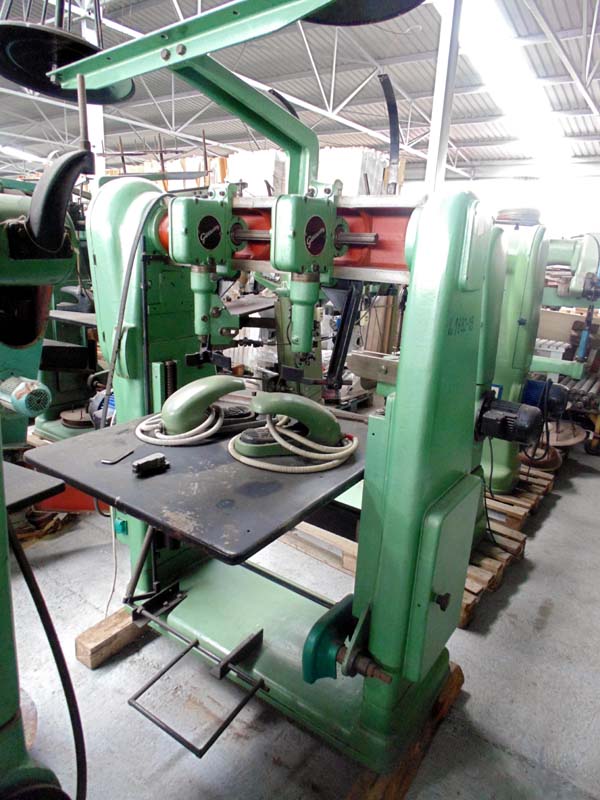

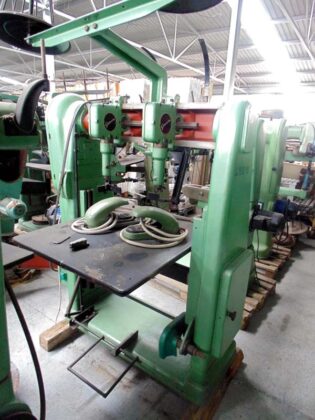

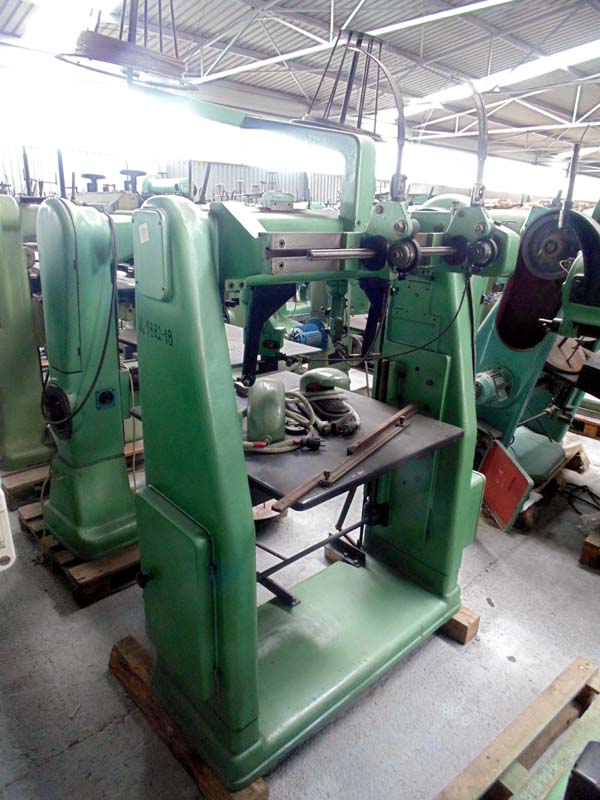

Corali Gazzella M22, a robust double-headed stapler for making the body (frame) of wooden crates. Unlike the more modern M67 units, this model is characterized by a massive horizontal rail and a specific shape of the working heads.

The machine is used to form the body of the crate. Sticher join the sides and front of the wooden packaging through the corner slats.

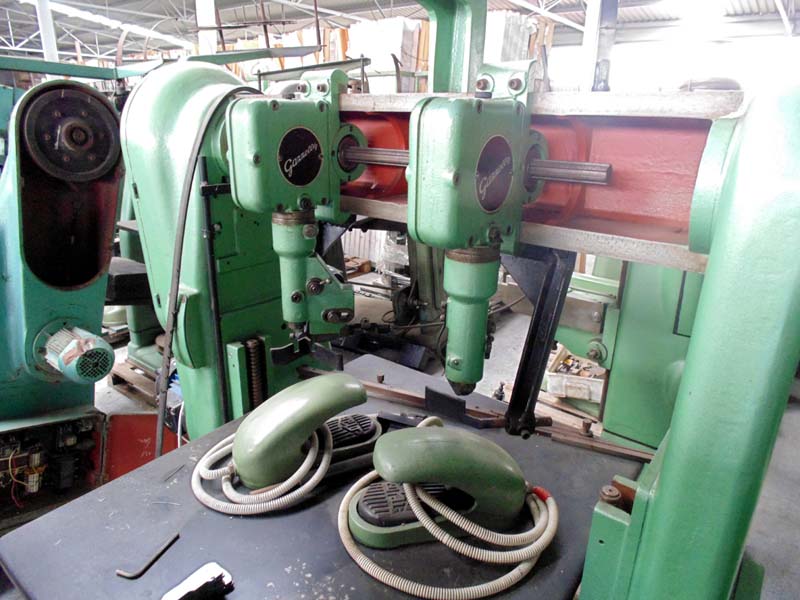

Synchronized, it drives both heads that pull the wire from the upper coils. In that way, cut it precisely, shape it into staples and join the wooden elements under pressure. It is controlled via a mechanical foot pedal on the bottom.

Stapler Corali M-22 … Technical data:

Recommended wire diameter: Standard packing wire from 1.1 mm to 1.3 mm.

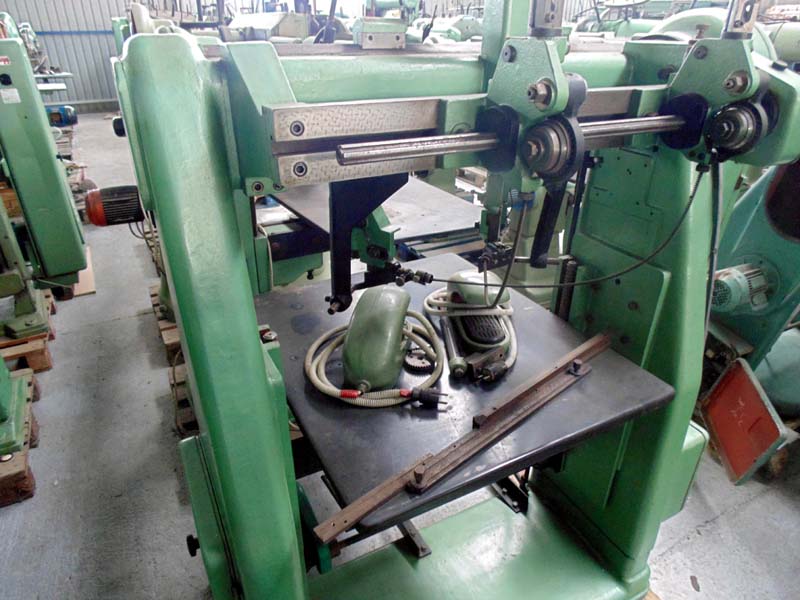

The Corali Gazzella M22 allows precise adjustment of both stapling heads. Operators adjust the distance between the heads up to 450 mm. The heads move as close as 50 to 60 mm. This tight spacing allows the machine to assemble very shallow crates. Users can also place sturdy staples very close together.The maximum distance of 450 mm covers standard agricultural crates. This width also fits most industrial crates on the local market. The operator loosens the fixing screws on the back. Then, the user manually slides the heads along the metal rail. Finally, the operator firmly tightens the screws at the desired width.The powerful drive motor delivers 1.5 horsepower or 1.1 kilowatts. This reliable motor operates at a stable speed of 950 rpm.

Stapler Corali M-22

1 of 3

Advantages of the machine:

Manufacturers build the massive frame from heavy cast iron. The machine weighs between 350 and 420 kilograms. This heavy weight ensures excellent stability during continuous operation. The solid body effectively dampens all intense vibrations.Factory owners highly value these machines today. The simple design contains no sensitive electronic components. Heavy mechanical heads and tough clutches work flawlessly for decades. Operators only need to provide regular lubrication. Buyers usually purchase these machines used as imports from Italy.

Stapler Corali M-22 is located in Mačvanska Mitrovica, Žarka Vucinića street 32 b (part of the city of Sremska Mitrovica), Serbia. The machine is in good condition and you can test it in operation. Transportation of the machine is at the client’s expense, and after purchasing from our company, the crate bottom machine will load into the client’s vehicle, free of charge. “Apocalypse” LLC has over 2,500 used machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden crates of the Corali brand. «Apocalypse» LLC offers you complete lines for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet. Be our guests, and let’s work together for mutual benefit.
