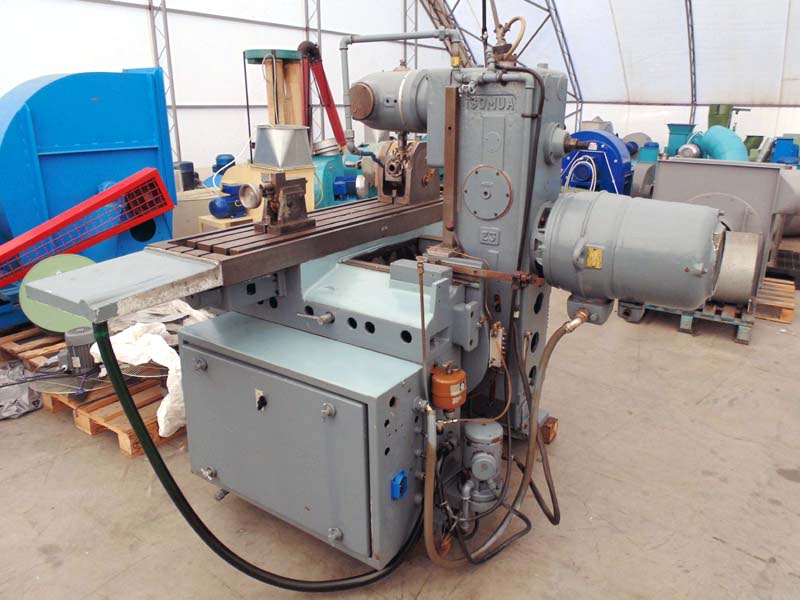

Milling machine SOMUA 5243_24, Universal (Model Z3)

Universal Milling Machine SOMUA, model Z3 (Stock No.5243-24) – used metalworking machinery, imported from Italy.

Are you looking for a robust and reliable universal milling machine? The French SOMUA model Z3 (series 5243-24) delivers high precision for metalworking shops. This industrial milling machine handles heavy-duty tasks with ease. It features an integrated drilling head for maximum workplace versatility. The machine is located in our warehouse in Macvanska Mitrovica, Serbia, ready for inspection.

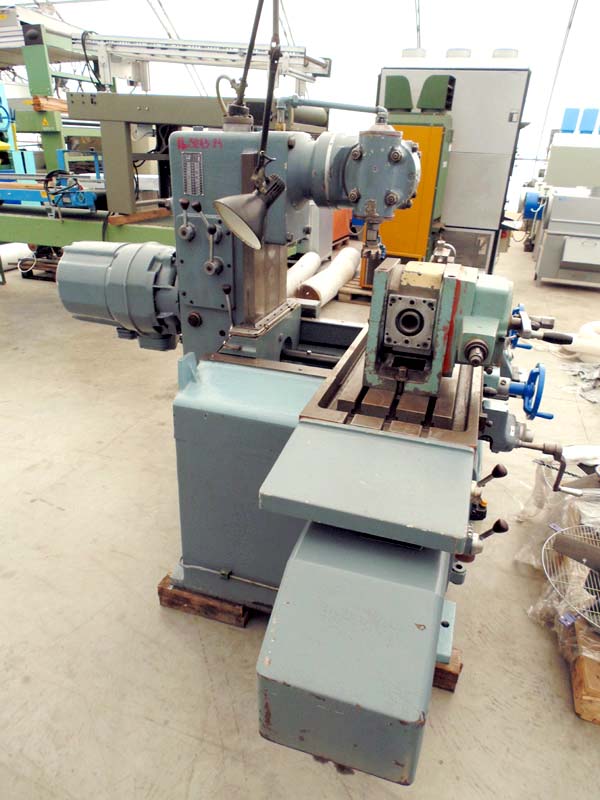

Milling machine SOMUA 5243_24

MMilling machine SOMUA Z3 * Technical Specifications

Feature Technical Data for SOMUA Z3
Machine Type Universal milling machine for metal
Model Z3 (Stock No.5243-24)
Work Table Dimensions 1600 x 370 mm
Spindle Motor Power 3 KW
Drilling Head Taper ISO 40
Spindle Speed Range From 40 to 2000 rpm
Drilling Height 23 mm
Drilling Capacity Ø 16 mm
X-Axis Travel (Longitudinal) 1000 mm
Y-Axis Travel (Cross) 320 mm
Z-Axis Travel (Vertical) 440 mm
Machine Dimensions (LxWxH) 3280 mm x 2225 mm x 1835 mm
Machine Weight 2500 KG
Origin Used, imported from Italy

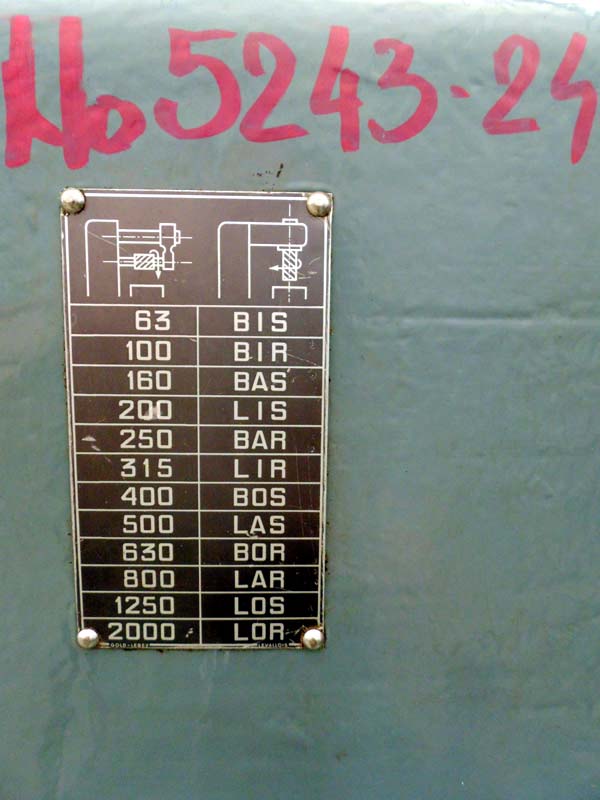

Factory Feed Table for Milling machine SOMUA Z3

The original chart defines the automatic table feeds in millimeters per minute (mm/min).

The operator selects values based on the input shaft speed of 1500 or 3000 rpm.

Milling machine SOMUA 5243_24

Gear Position Feed at 1500 rpm Feed at 3000 rpm
MA 12.5 mm/min 25 mm/min
TA 20 mm/min 40 mm/min
SA 32 mm/min 63 mm/min
ME 50 mm/min 100 mm/min
TE 80 mm/min 160 mm/min
SE 125 mm/min 250 mm/min
MI 200 mm/min 400 mm/min
TI 315 mm/min 630 mm/min
SI 500 mm/min 1000 mm/min

1Production Application and Benefits

This robust French machine performs heavy roughing and fine finish metal milling efficiently.

The upper speed range (MA-SA) allows safe milling of hard steel and cast iron.

Medium feed values (ME-SE) suit daily machining of standard construction materials perfectly.

Lower modes (MI-SI) ensure high surface quality for milling aluminum and plastics.

The maximum feed of 1000 mm/min enables fast workpiece positioning on the table.

Correct gear selection guarantees excellent accuracy and maximum milling productivity.

Location and Loading

  • Warehouse Location: Apokalipsa d.o.o, Žarka Vučinića 32B, Mačvanska Mitrovica, Serbia.
  • Logistics Support: We provide a forklift or crane at our warehouse for loading. We secure safe machinery transport to your vehicle.

Do you have any questions or want to request a price?


CALL FOR PRICE & OFFER

📱 Available on WhatsApp and Viber: +381 63 644-870
