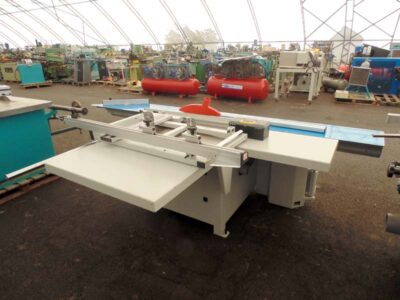

Panel saw 4996-22.

Compact MJ6132 is a standard and highly efficient industrial machine with a sliding table intended for precise cutting of sheet materials.

The principle of operation of this machine is based on the precise linear guidance of the material over a moving table (cart) through a system with two saw blades:

The scorer (small saw blade): A small scoring blade sits in front of the main saw. It rotates in the opposite direction at 8000 rpm. This blade cuts only the bottom layer of the material. It scores the melamine, veneer, or laminate a few millimeters deep. This initial cut prevents fraying and cracking during the main cut.

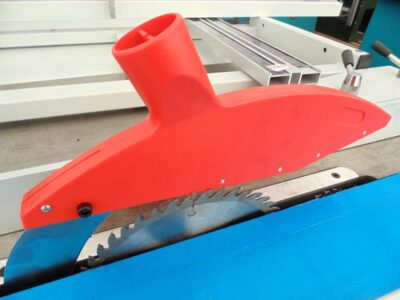

Main saw (large saw blade): A powerful 4 kW electric motor drives the main saw. The large blade rotates between 4000 and 6000 rpm. It passes directly through the pre-cut scoring line. The main blade cuts the board completely. This process leaves straight and clean edges on the material.

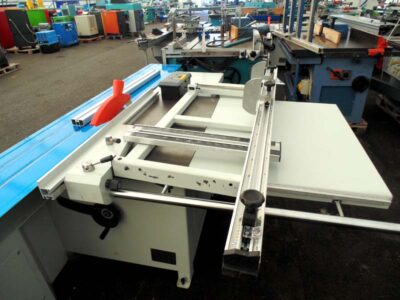

Sliding table (carriage): The operator places the board on a 3200 mm aluminum carriage. Hardened steel guides help the carriage slide smoothly. The operator pushes the table forward manually. This smooth movement ensures a straight, vibration-free cut.
Angular cutting: The machine tilts the saw assembly from 0 to 45 degrees. The operator monitors this angle on the control panel. The panel features an analog or digital scale. This feature enables the creation of perfect oblique joints.

Panel saw 4996-22

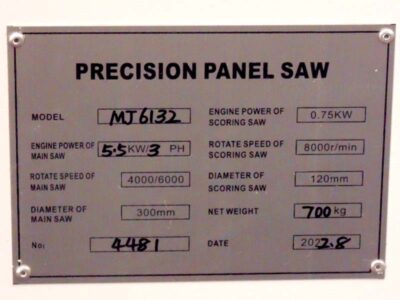

1Panel saw 4996-22 … Technical specifikations

Brand: Compact, model MJ6132.
Cutting length: 3200 mm.
Main engine power: 4 kW.
Saw blade diameter: Ø 300 mm.
Saw shaft: Ø 30 mm.
Speed of the main circular saw: 4000 – 6000 rpm.
Maximum cutting width: 1250 mm.
Scoring disc diameter: Ø 120 mm.
Scorring unit motor: 0.75 kW.
Scorrer shaft: Ø 20 mm.
Scorring unit speed: 8000 rpm.
Sliding carriage dimensions: 3200 x 375 mm.
Cutting height at an angle of 90°: 80 mm.
Adjust the saw angle: up to 45°.
Cutting height at an angle of 45°: maximum 55 mm.
Weight: 700 kg.
Machine dimensions: 3800 x 1100 x 1200 mm.
NEW, imported from Italy !!!

Examples of application in practice:

Workshops widely use this panel saw model for furniture production. The machine also prepares materials for interior fittings. It efficiently processes chipboard and MDF. Manufacturers cut these boards for kitchens and wardrobes. The machine also produces office and home furniture. Carpenters cut plywood and panel boards for doors. It handles multi-layered wooden boards and massifs easily. The stable construction also cuts plastics and composites. It successfully cuts ABS, PVC, and Plexiglas materials.

Panel saw 4996-22 is located in Mačvanska Mitrovica, Žarka Vucinića street 32 b (part of the city of Sremska Mitrovica), Serbia. The machine is in good condition and you can test it in operation. Transportation of the machine is carried out at the client’s expense, and after purchasing from our company, the sliding table saw will be loaded onto the client’s vehicle free of charge. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden boxes of the Corali brand. Comprehensive production line for: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
