Shortstroke planer 3524-21, for metal.

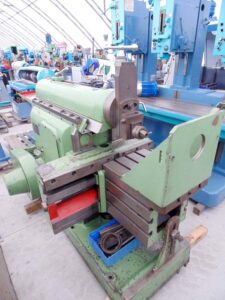

Metal Shaping Machine 7B35 (Shaper)

The industrial metal shaping machine model 7B35, of robust Russian manufacture, is designed for precise flat and profile machining of parts made of steel, cast iron, and non-ferrous metals. This used metal shaping machine (short-stroke shaper) is widely used for cutting keyways, grooves, and various angular surfaces in single-part and batch production.

The machine is in fully functional and working condition. It is located at our central warehouse, where it can be personally inspected and thoroughly tested in operation before purchase.

Shortstroke planer 3524-21

1 of 4

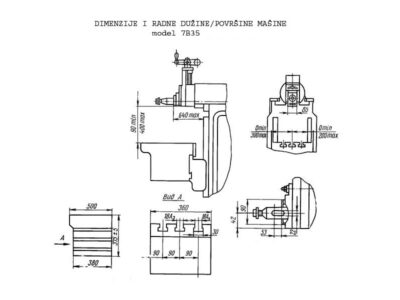

Metal Shaping Machine 7B35 – Technical specifications

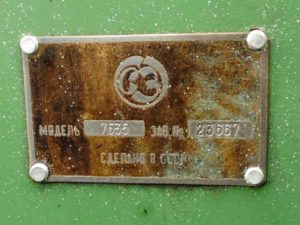

• Machine Model: 7B35 (7Б35)
• Maximum ram stroke length: 500 mm
• Minimum ram stroke length: 50 mm
• Table working surface dimensions: 500 x 360 mm
• Maximum table travel:
  • Horizontal travel: 500 mm
  • Vertical travel: 320 mm
• Tool head swivel angle: ±60°

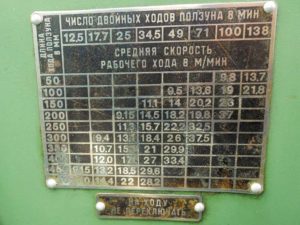

• Number of double strokes per minute: Multi-stage speed range for optimal machining
• Electric motor power: Robust industrial drive with high durability
• Condition: Used machine, ready for operation

Main Advantages and Applications – Shortstroke planer 3524-21

This type of machine finds its ideal application in machine shops, toolrooms, and maintenance departments:

• Keyway and Groove Cutting: Extremely efficient for cutting internal and external keyways on gears, pulleys, and hubs.
• Complex Profile Machining: Thanks to the swiveling tool head, it allows high-precision machining of surfaces at specific angles.
• Tool Cost Efficiency: It utilizes simple and highly affordable single-point cutter tools, dramatically reducing consumable costs compared to milling machines.

Shortstroke planer 3524-21 * Location, Live Testing, and Free Loading

This metal shaping machine is located at the facilities of Apokalipsa d.o.o. in Macvanska Mitrovica, Zarka Vucinica 32B street (Sremska Mitrovica area), Serbia.

Transport organization is the responsibility of the client, while our company provides **completely free loading** of the machine into your transport vehicle immediately after the purchase is finalized.
