CNC Machining Center 1645

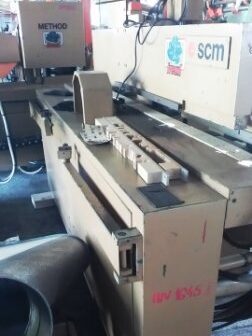

CNC Machining Center 1645.
Wooden window production machine.
Brand: SCM, model: METOD.
Minimum machining length: 200 mm.
Max. machining length: 2800 mm.
Minimum machining height: 25 mm.
Max. machining height: 165 mm.
Cutting motor power: 5.5 hp.
Tool speed: 3000 rpm.
Milling motor power: 10 or 15 hp.
Moulding tool speed: 3500 rpm.
Standard milling shaft length: 500 mm.
Additional milling shaft length: 620 mm.
Engine power for profiling and calibration: 7.5 – 10 – 15 hp
Profiling and calibration tool speed: 6000 rpm.
Standard profiling and calibration shaft length: 270 to 320 mm.
Optional calibration shaft profile and length: 500 to 620 mm.
Dust collector motor: 3 hp.
Conveyor speed (slow/fast): 4-16 m/min.
Adjustable conveyor chain speed: 2.5 to 12 m/min.
Used, imported from Italy.

CNC Machining Center 1645 is located at Mačvanska Mitrovica, ul. Žarka Vučinića 32 B. (part of Sremska Mitrovica), Serbia. The machine is in very good condition and you can test it in work. Transportation is at the customer’s expense, and this wooden window production machine will be loaded onto the buyer’s vehicle free of charge after purchase from our company. “Apocalypse” LLC has over 2,500 used and refurbished machines in stock. You can see and test all of them in the company’s workshops. The machines are mainly Italian-made and made of cast steel. We offer complete lines for the production of Corali wooden boxes. Complete production lines for: furniture, pellets, pallets, wooden doors and windows, and parquet.
