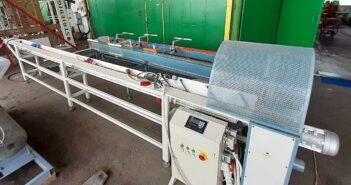

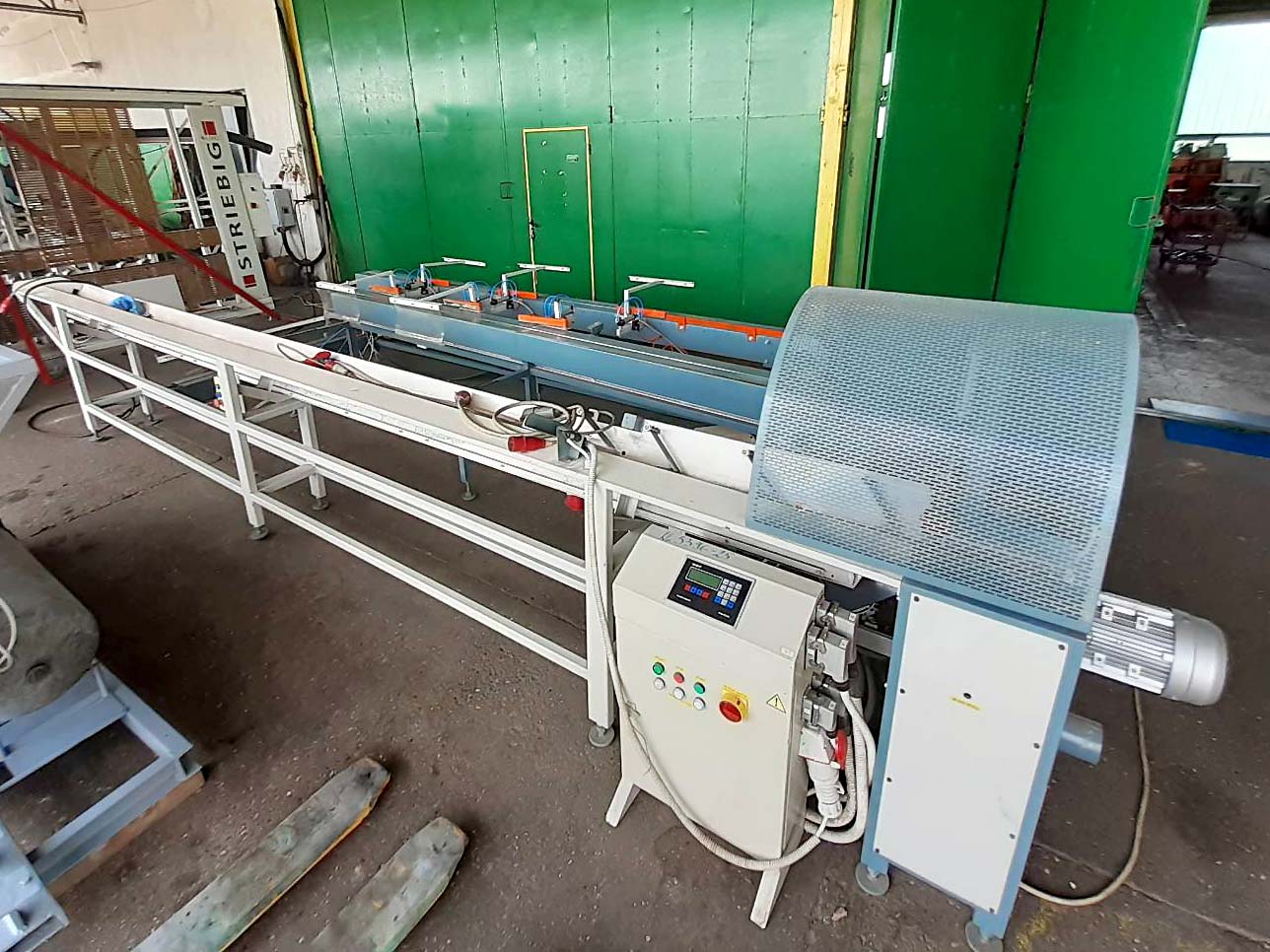

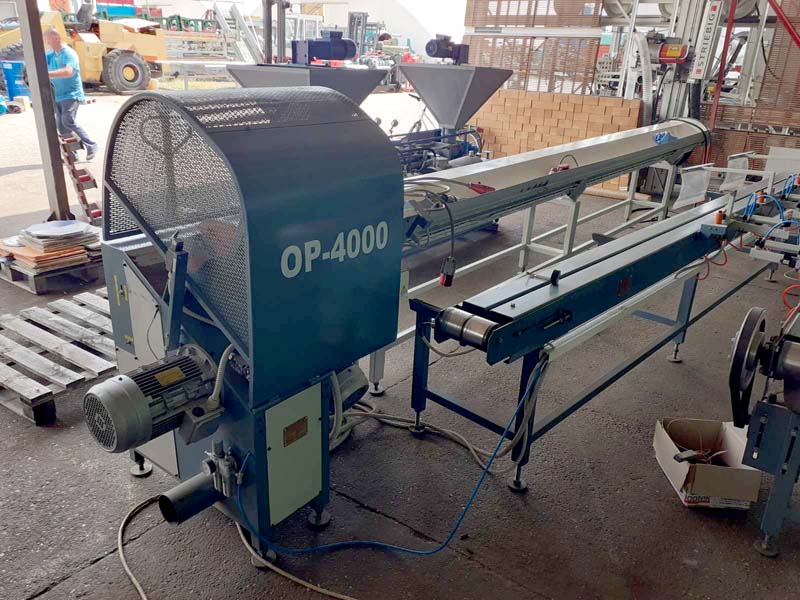

CNC Optimizer DIGIT.

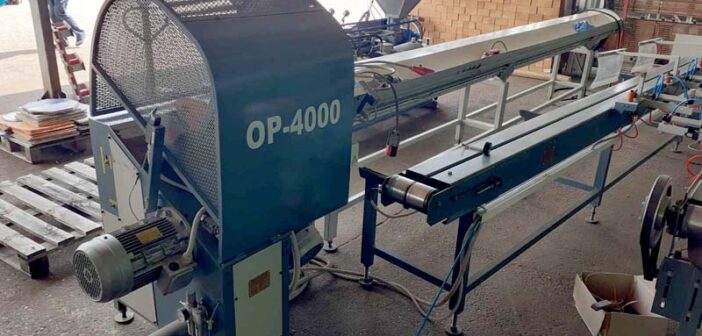

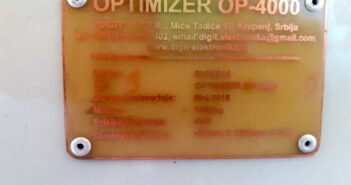

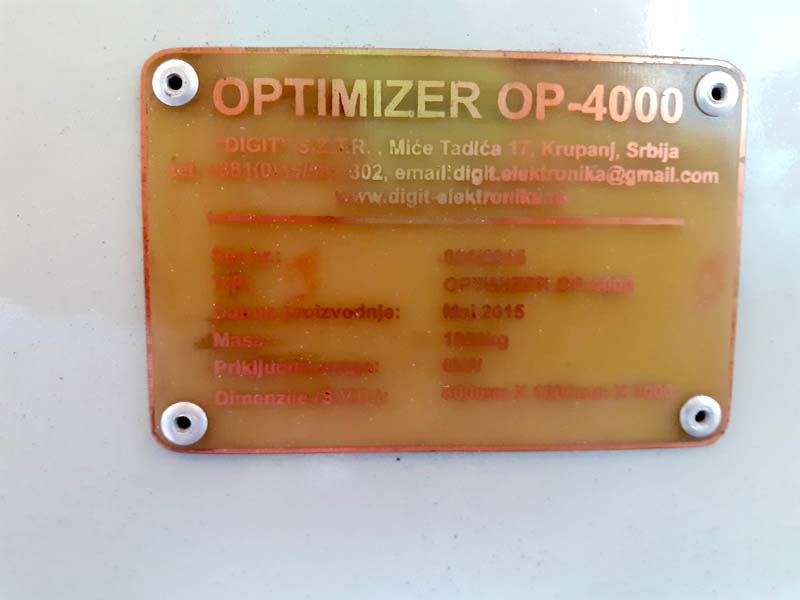

Brand: DIGIT, model OP 4000.

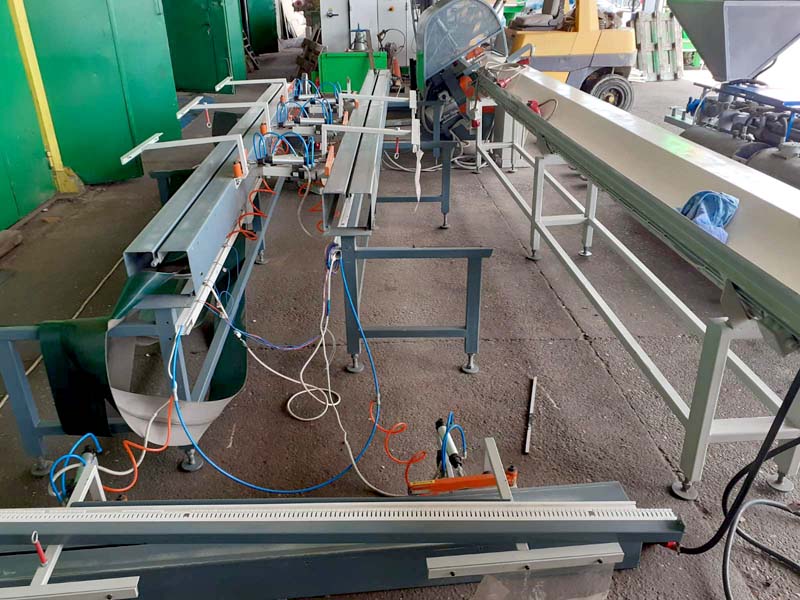

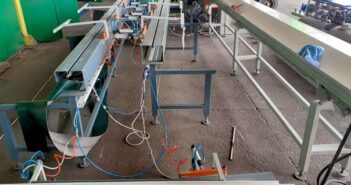

Machine for automatic lengthwise cutting of wood to specified dimensions.
The largest length of the board: 5.2 m.
Max board thickness: 80 mm.
Maximum board width:
– 230 mm (for a board with a thickness of 25 mm),
– 220 mm (for a board with a thickness of 50 mm),
– 200 mm (for a board with a thickness of 70 mm).
Total engaged power: 7.5 KW.
Maximum positioning speed: 1.2 m/s.
Positioning motor power: 1.5 KW.

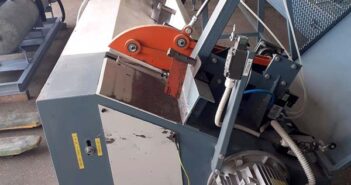

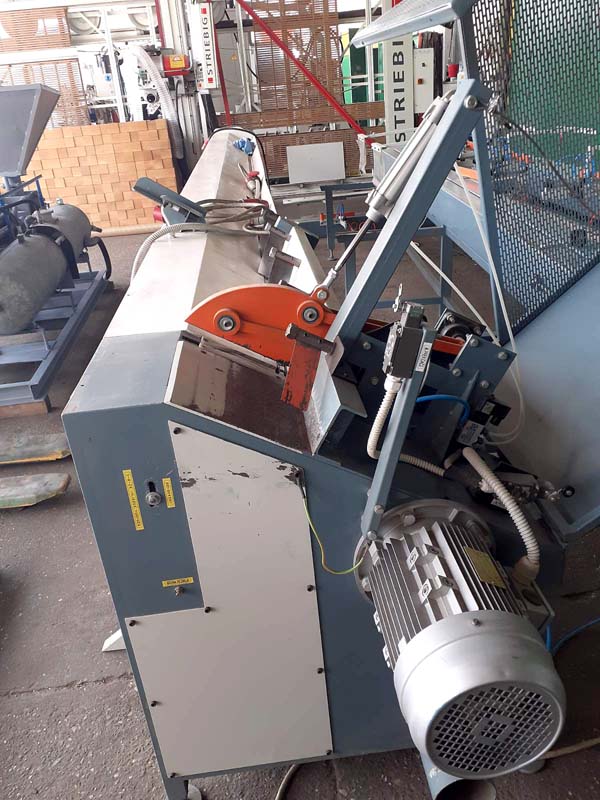

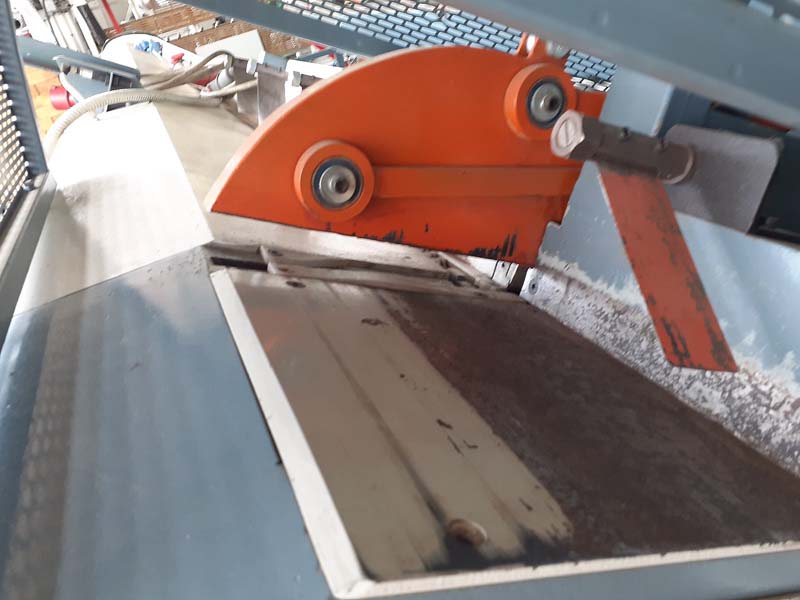

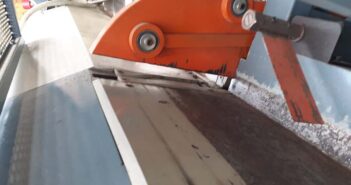

Saw blade diameter: Ø 350 mm.
Saw rotation speed: 4200 rpm.
Maximum cutting cycle speed: 65 cuts per minute.

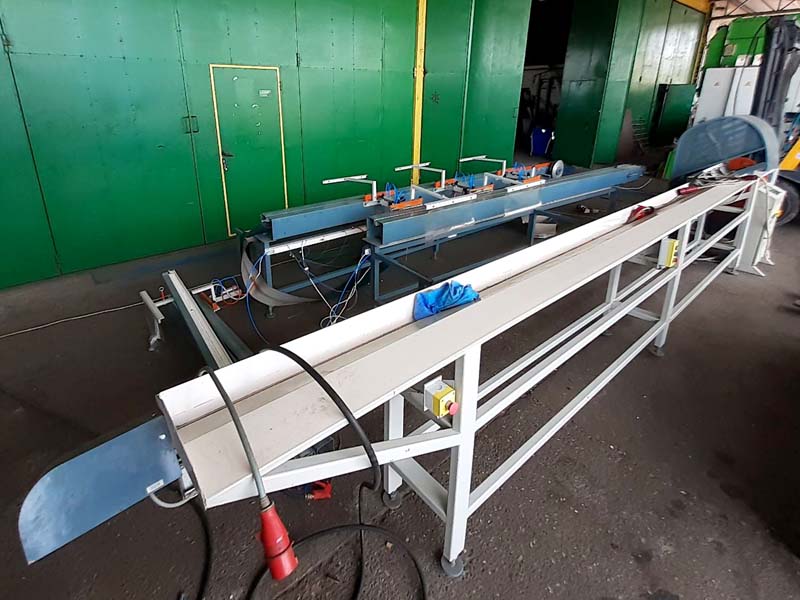

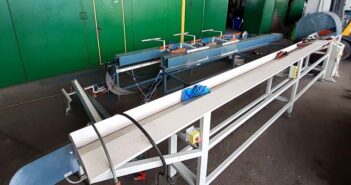

Length of the work table: maximum 6 meters.
Required air pressure: 6 to 8 bar.
Opening for blowing sawdust: Ø 100 mm.
Machine dimensions 1500 x 1400 x 500 mm.

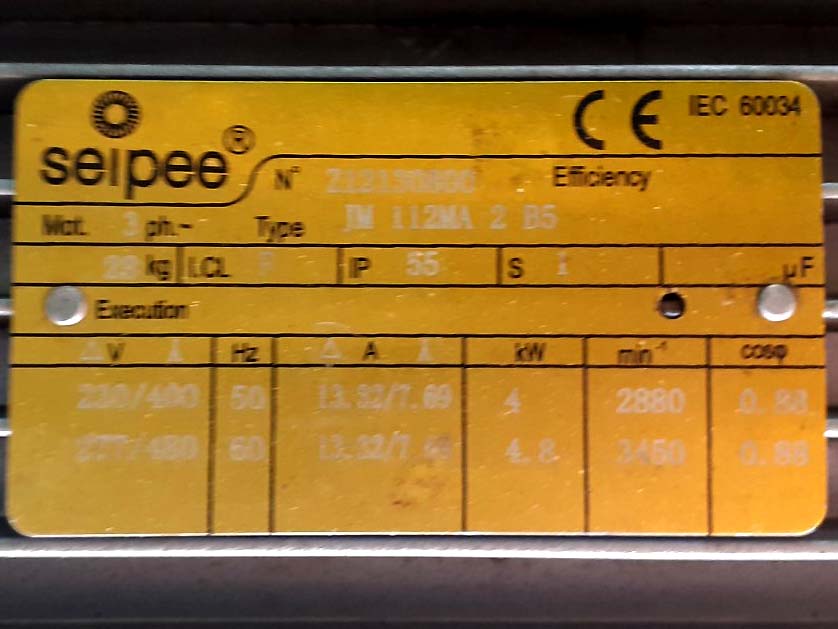

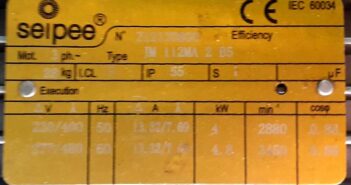

Saw motor power: 4 KW, speed 2880 rev/min.

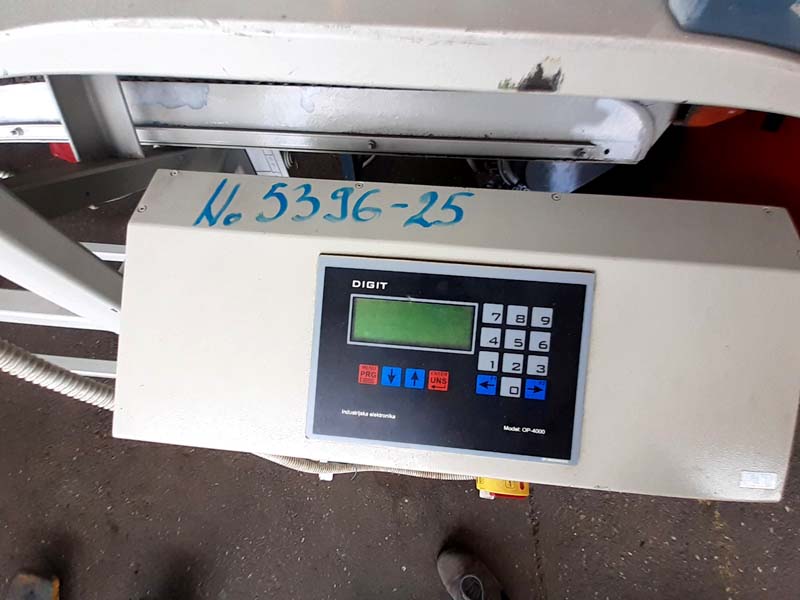

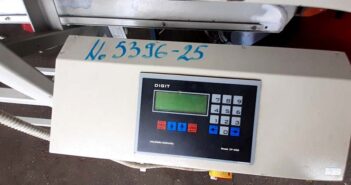

Control panel: LCD screen 4 x 20 characters, keyboard 16 keys.
Board length measurement: Automatic.
Optimization algorithm: Advanced, longitudinal optimization.
Blackboard error marking sensor: Reading Fluorescent Chalk Marking.
Weight: about 300 kg.
Second-hand, domestic production.

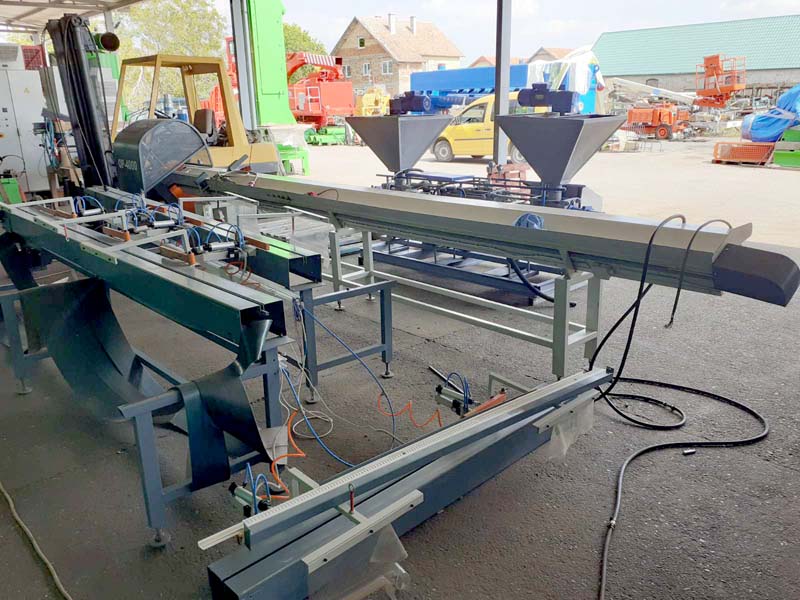

CNC Optimizer DIGIT is located in Mačvanska Mitrovica, Žarka Vučinića Street 32B (part of the city of Sremska Mitrovica), Serbia. The machine is in excellent condition and can be tested in operation. Transport is at the client’s expense, and this CNC circular saw will be loaded into the client’s transport vehicle free of charge, after the purchase in our company. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden boxes of the Corali brand. Comprehensive production line for: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
