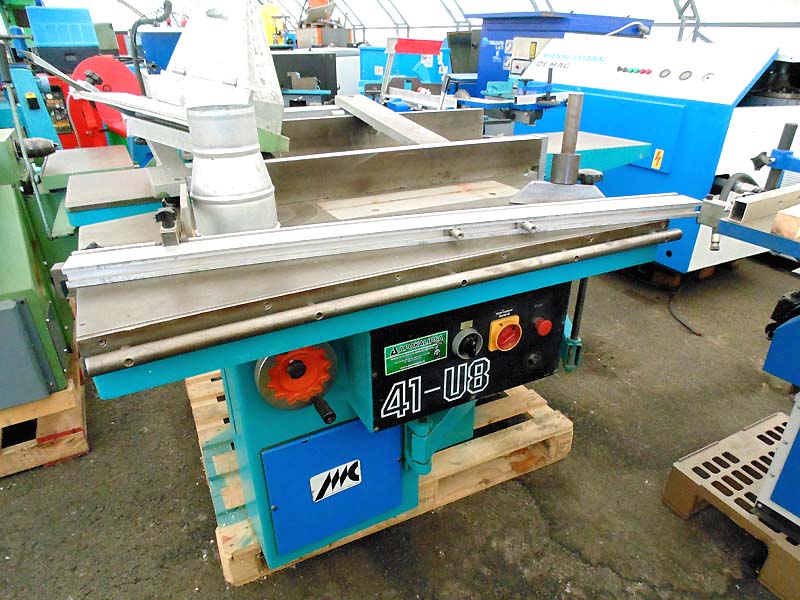

Combined machine 4223-22.

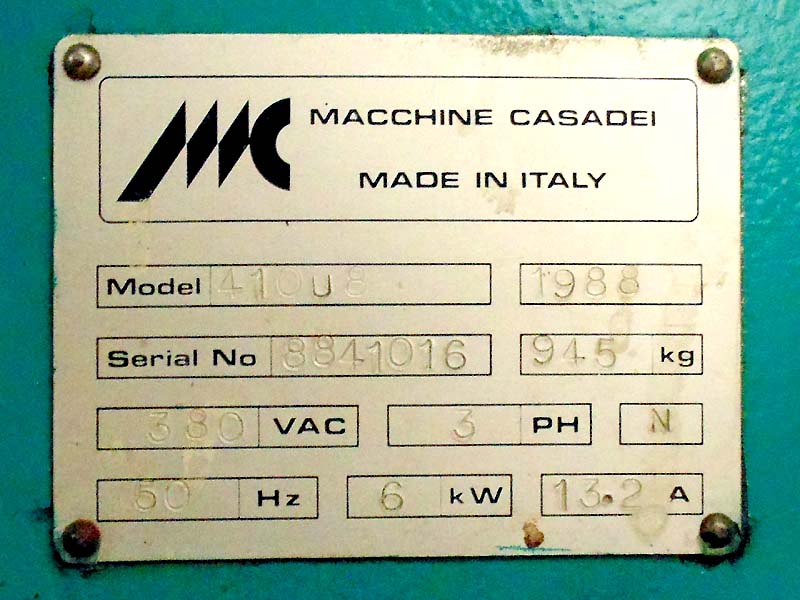

Brand: Casadei, model 410-U8.
Jointer:
Maximum working width: 410 mm.
Jointer table length: 2000 mm.

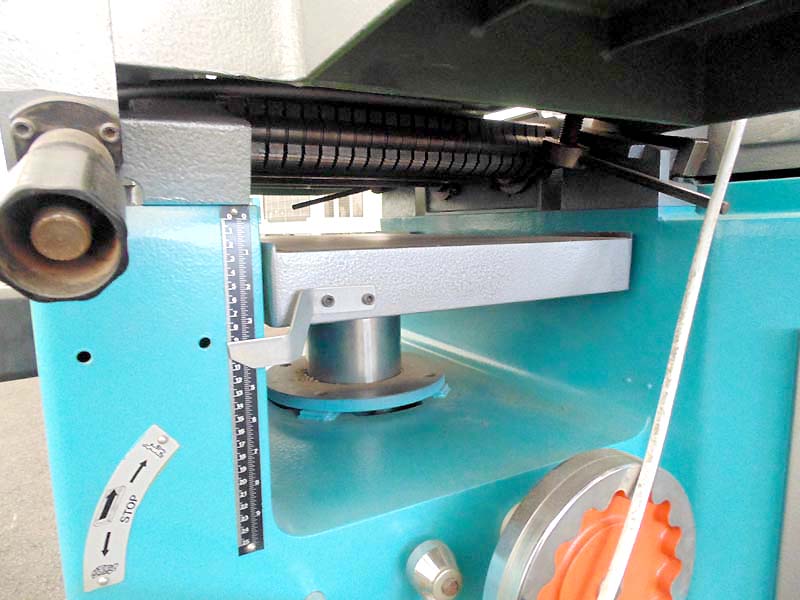

Thicknessing machine:
Maximum height thicknesser: 240 mm.
Maximum thickness of the removed layer in thicknesser / jointer: 4 mm.
Feed speed thicknesser: 7 m / min.
Mortiser-Drill:
Maximum drilling depth and length (groove): 100 x 100 mm.
Maximum drill diameter: 16 mm.
Drill shaft rotation speed: 5,200 rpm.

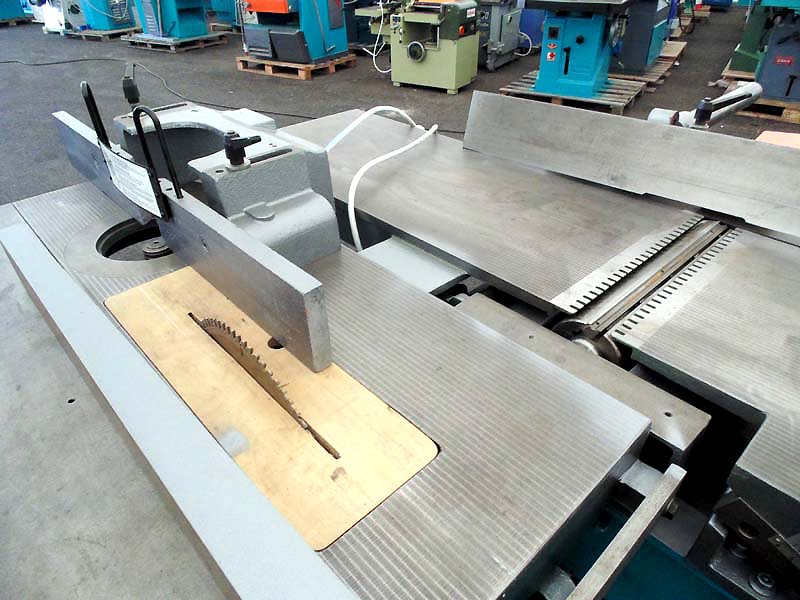

Circular saw:
Circular saw diameter: 300 x Ø 30 (shaft) mm.
Maximum sawing height: 85 mm.
Saw shaft rotation speed: 3,700 rpm.

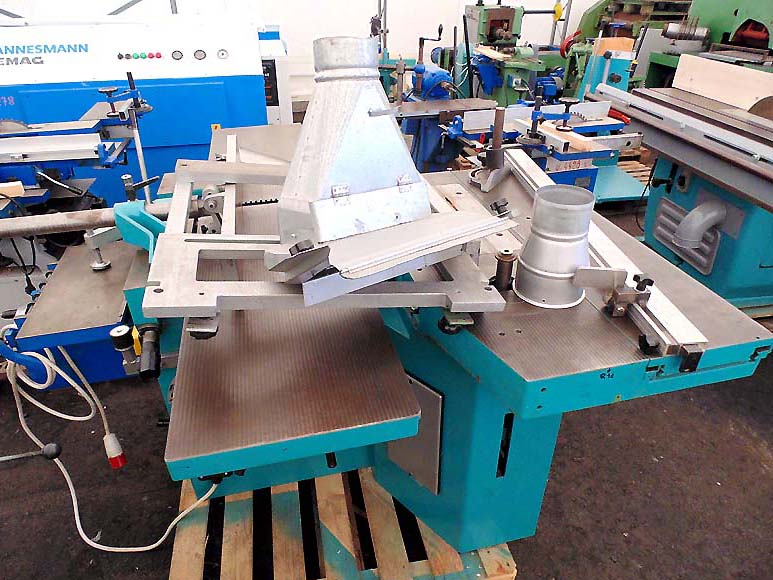

Spindle moulder:
Maximum milling tool diameter: 190 x Ø 40 (shaft) mm.
Spindle rotation speed: 6,000 rpm.
Additional information
Total power engaged: 6 KW (two independent motors).
Desk dimensions:
– Thicknesser table: 550 x 410 mm.
– Jointer: 1800 x 410 mm.
– Circular saw: 850 x 450 mm.
– Spindle moulder worktop: 850 x 450 mm.
– Support: 400 x 250 mm.
Combined machine Casadei – Overall dimensions: 2000 x 1620 x 1050 mm.
Year of manufacture: 1988.
Weight: 945 kg.
Used, imported from Italy.

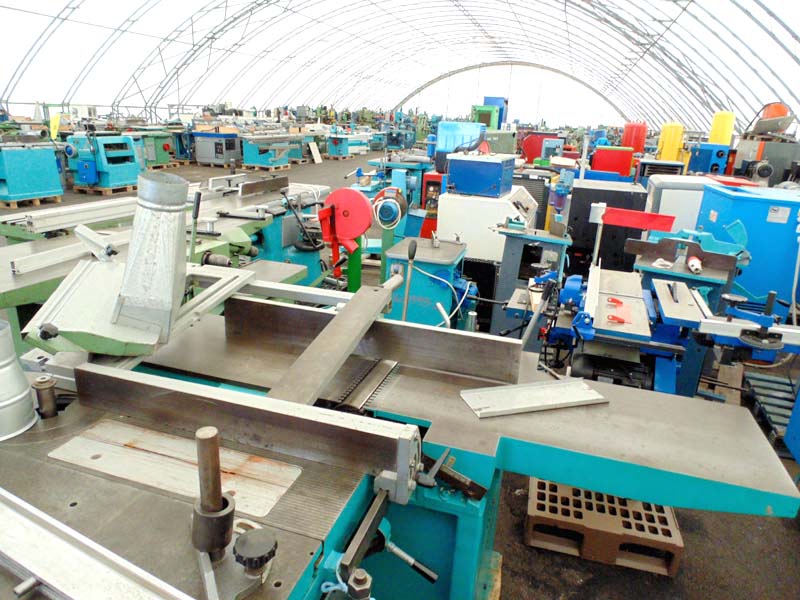

Combined machine 4223-22 is located in Mačvanska Mitrovica, at Žarka Vučinića Street no. 32B (part of Sremska Mitrovica), Serbia. The machine is in good condition and can be tested in operation. Transportation is carried out at the expense of the client, and after purchase in our company, the Casadei 410-U8 will be loaded free of charge on the client’s transport vehicle. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. Machines are mostly Italian made, iron cast. We offer complete lines for the production of wooden boxes of the Corali brand. Comprehensive production line for: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
