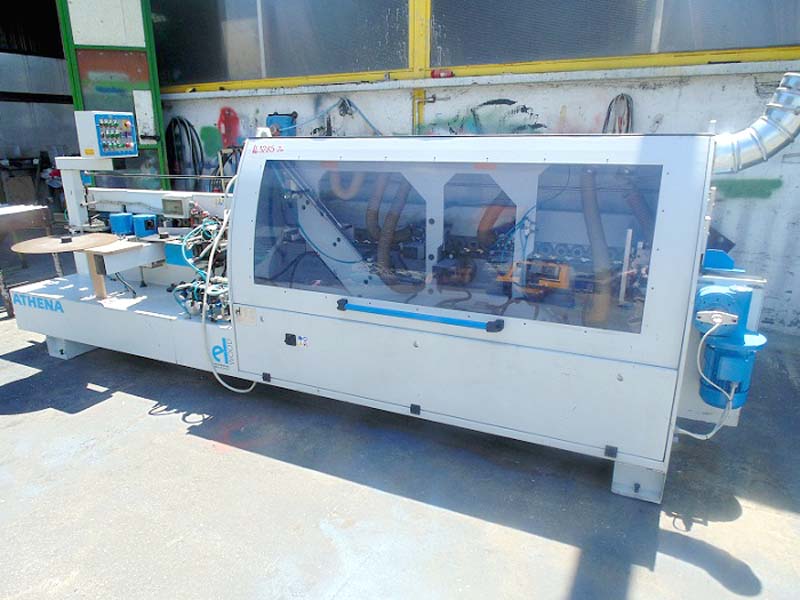

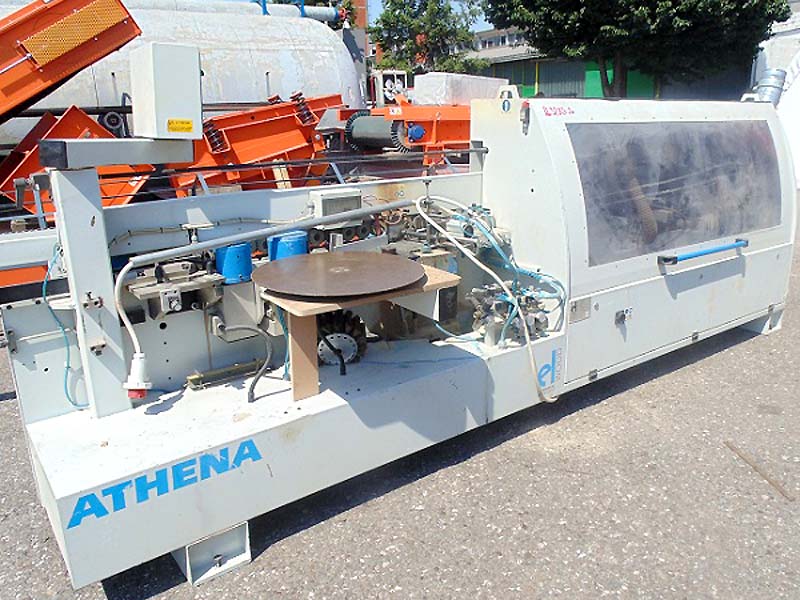

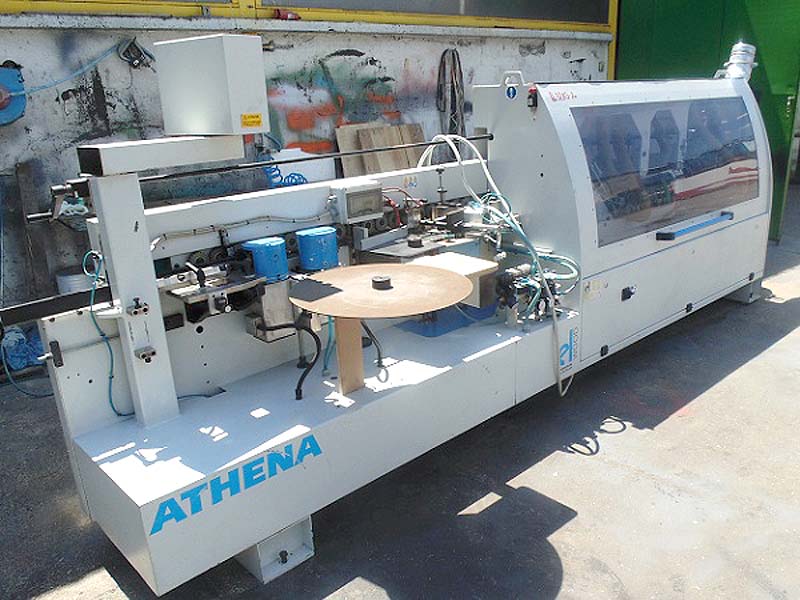

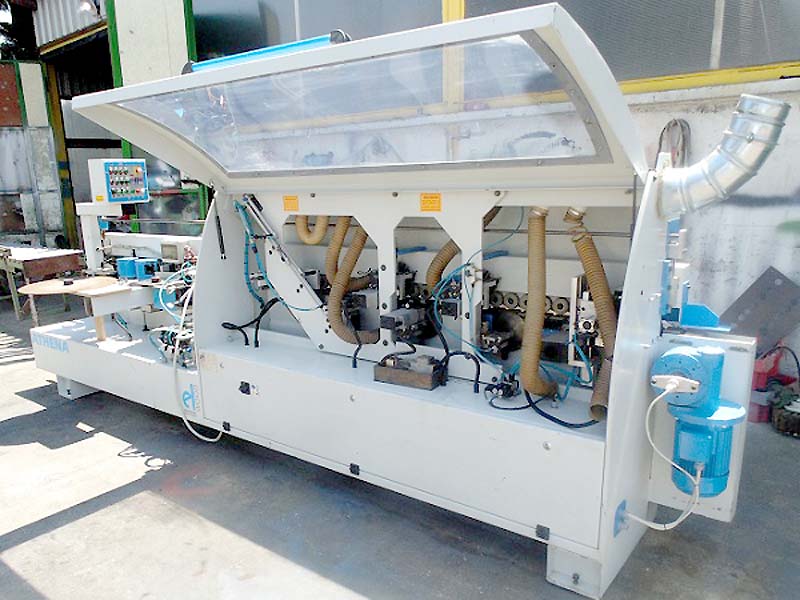

Edgebander Athena 3285-20.
Works with hot glue.

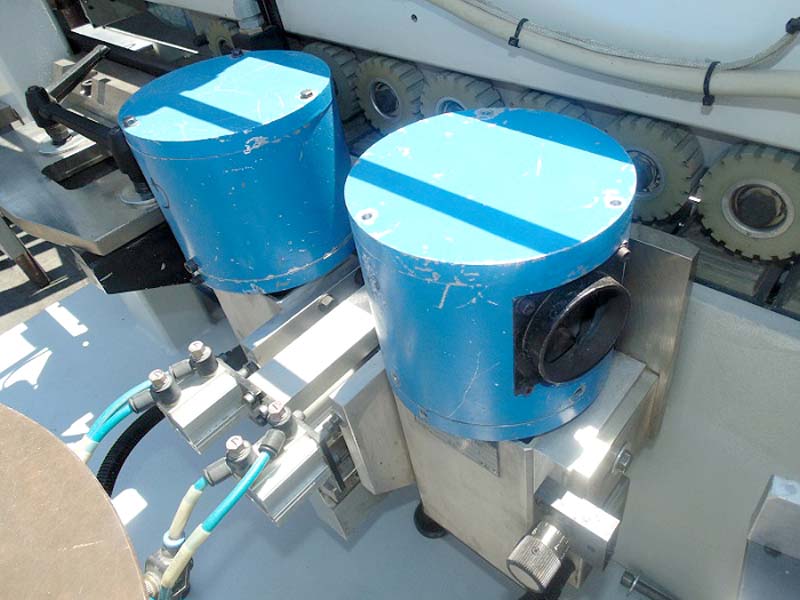

Two heating hair dryers with adjustable angle.
With a brush for polishing and sanding the edges (removes glue residues).
It has tape trimmer units and automatic cutting shears.
Pre-milling unit: Used to straighten the edge of the chipboard before gluing.
Gluing system: Hot glue tank with application roller.
Guillotine and pressure zone: Cutting the tape from the roll and rollers for strong pressure of the tape on the board.

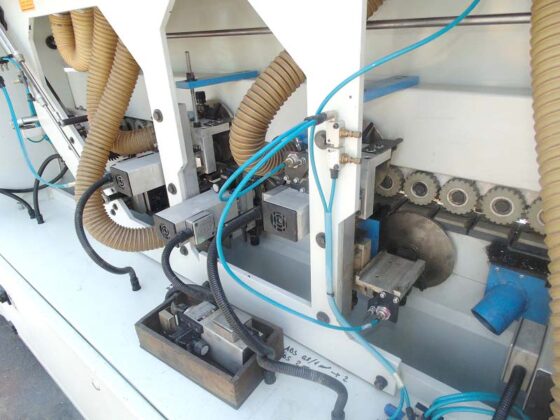

End-trimming unit: Precise cutting of excess tape at the beginning and end of the board.
Milling unit for edge milling (Fine-trimming): Processing of the upper and lower edges of the tape (straight or under a radius).
Rounding device: A key feature of the RC10 for corner finishing.
Scrapers and Polishers: Removing glue residue and polishing the edge for a final shine.
1Edgebander Athena 3285-20 – Technical data:
Feed rate: Usually around 10–12 m/min.
Plate thickness: Supports thicknesses from 10 mm to 60 mm.
Tape thickness: In rolls (0.4–3 mm) or in solid strips (up to 5 mm or more, depending on the configuration).
Connections: Requires compressed air (6 bar) and sawdust extraction system.

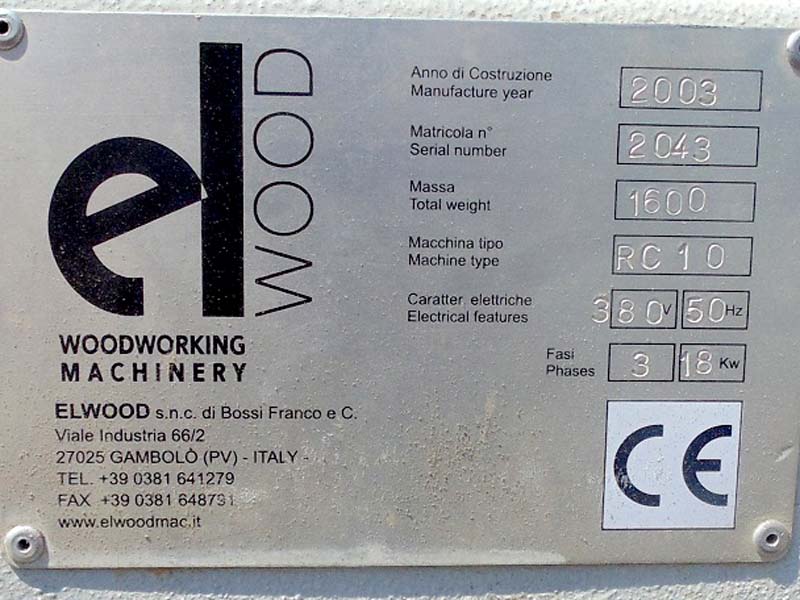

Production: ElWood Woodworking Machinery, model Athena RC10.
Total power: 18 KW.
Total length of the machine: 4750 mm.
Year of manufacture: 2003.
Weight: 1600 kg.
Used, imported from EU.
Edgebander Athena 3285-20 is located in Mačvanska Mitrovica, Street Žarka Vučinića 32 B (part of the city of Sremska Mitrovica), Serbia. The machine is in excellent condition and can be tested in operation. Transport is at the client’s expense, and this weighing machine will be loaded into the client’s transport vehicle free of charge, after the purchase has been made in our company. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. You can see and try all the machines in the halls of the company. The machines are mostly Italian-made, cast. We offer complete lines for the production of wooden crates of the Corali brand. Complete line for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
