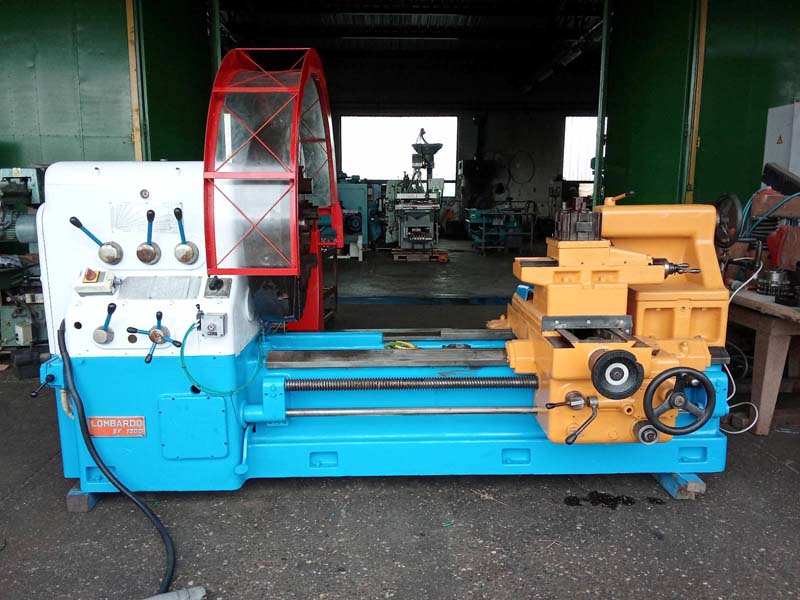

Metal lathe LOMBARDO

Metal lathe LOMBARDO
Model: SF 1200.
Center height (above bench): 580 mm.
Distance between centers: 1500 mm.
Turning diameter (above bench): 1200 mm.
Scraping diameter above the support: 720 mm.
Lathe width (bench): 650 mm.
39″ 4-Jaw Chuck w/Jaws (head diameter): 800 mm.
Spindle hole diameter: 80 mm.
Eight spindle speeds.
Spindle revolutions per minute: 10-16, 5-27-45, 74-120-200-330.
Longitudinal displacement: 0.15 to 2 mm.
Transverse displacement: 0.75 to 1 mm.
Decimal thread pitch: 0.375 to 80 mm.
Whitworth thread pitch (threads per inch): 40 to 0.335 mm.
Guide screw pitch: 12.7.
Engine power: 15 hp.
Electric pump power: 0.15 HP.
Machine weight: 5000 kg.
Used, imported from Italy.

Metal lathe LOMBARDO

1 of 5

Metal lathe LOMBARDO is located in Mačvanska Mitrovica, Žarka Vučinića Street 32B (part of the city of Sremska Mitrovica), Serbia. The machine is in excellent condition and can be tested in operation. Transport is at the client’s expense, and this metal turning lathe will be loaded into the client’s transport vehicle free of charge, after the purchase in our company. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. You can see and try all the machines in the halls of the company. The machines are mostly Italian-made, cast. We offer complete lines for the production of wooden crates of the Corali brand. Complete line for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
