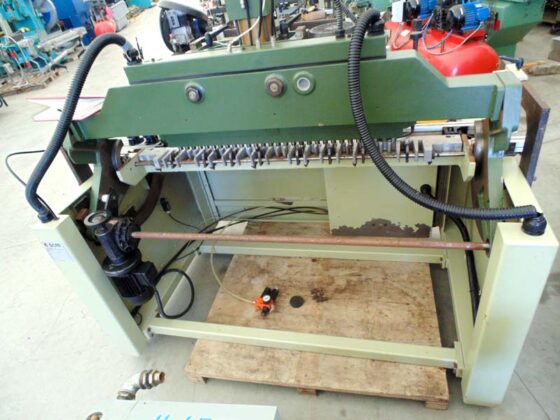

Multibit drill SCM 4570_22

Multibit drill SCM 4570_22.
Multi-spindle wood drill, with 29 drill heads, from top to bottom.

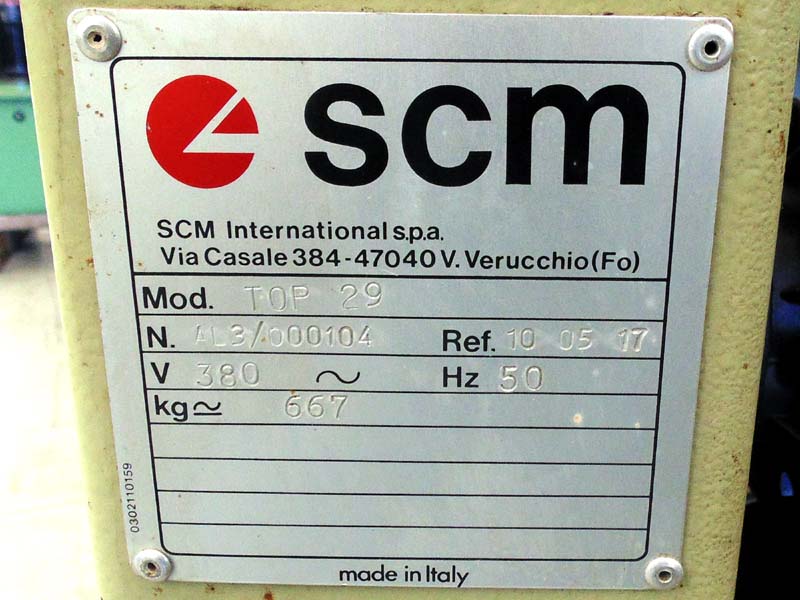

Brand SCM, model TOP29.
Dimensions of the work table: 1020 x 510 mm.
Maximum width between two spindles 896 mm.
Distance between spindles: 32 mm.
Hydraulic brake stroke: 50 mm.
Rotation motor power: 0.25 KW (0.35 HP).
Maximum drill piston stroke: 140 mm.
Drilling depth (vertical): 120 mm.
Drilling depth (horizontal): 80 mm.
Working height: 840 mm.
Automatically drills at an angle of up to 90 degrees.
Spindle speed: 2800 rpm.
Engine power: 2.2 KW (3 HP).
Operating pressure of the pneumatic system for material clamping: 6 atmospheres.
Type of drill bits: M10.
Weight 667 kg.
Machine dimensions: 1505 x 1600 x 1305 mm.
Used, imported from Italy.

Multibit drill SCM 4570_22

1 of 5

Multibit drill SCM 4570_22 is located at Mačvanska Mitrovica, at Žarka Vučinića Street no. 32 B (part of city of Sremska Mitrovica), Serbia. The machine is in good condition and you can test it in operation. Transportation is carried out at the expense of the client, and after purchase in our company, the multi-spindle borer will be loaded free of charge on the client’s vehicle. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden boxes of the Corali brand. Comprehensive production line for: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
