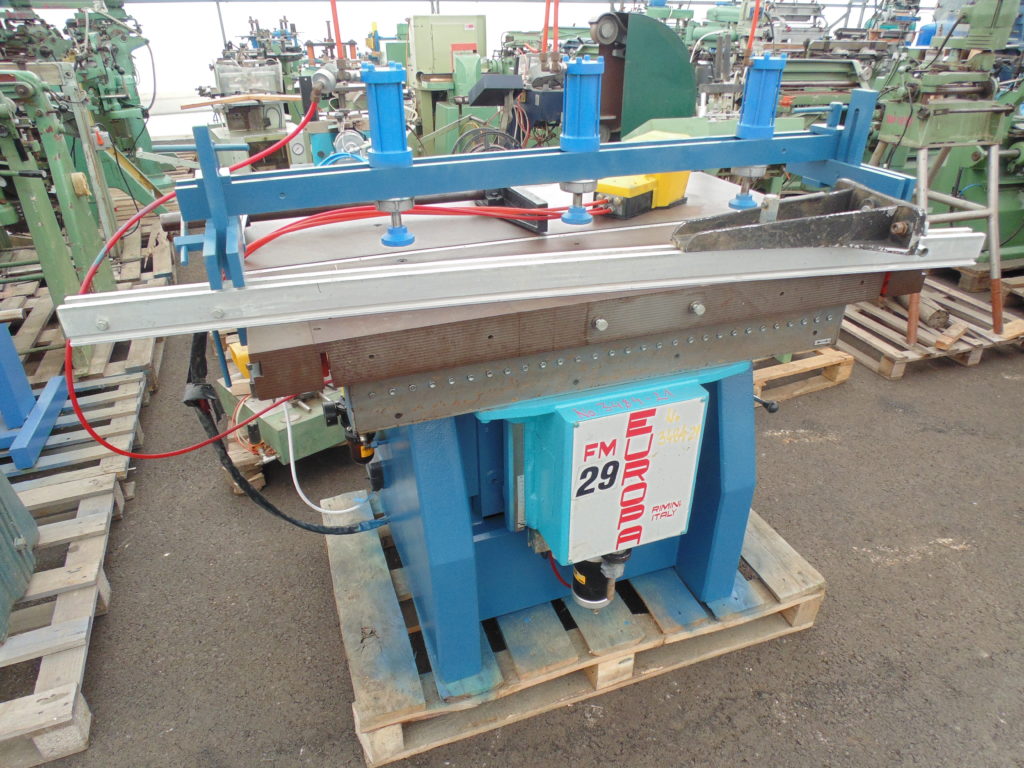

Multiple Spindle Drill 3484_21

The SCM FM29 represents a peak in multi-spindle drilling technology. First, this machine significantly increases production speed for furniture workshops. Consequently, operators complete complex drilling tasks much faster than before. Furthermore, the robust construction ensures high precision during every single cycle. Therefore, professional woodworkers choose this model for long-term industrial reliability.

Technical Precision and Efficiency:

Moreover, the machine features twenty-nine independent spindles for maximum coverage. Specifically, each spindle follows a standard thirty-two millimeter pitch distance. Thus, users create perfect holes for shelf supports and hinges. Also, the pneumatic head tilts quickly between vertical and horizontal positions. Additionally, the quick-change system allows operators to switch bits in seconds. Consequently, this flexibility reduces downtime and increases overall workshop productivity.

User Control and Durability:

Furthermore, new staff members learn to operate the machine very quickly. Also, the heavy steel frame absorbs vibrations during heavy-duty operations. Finally, the safety guards protect the operator throughout the entire process.

Multiple Spindle Drill 3484_21

1Multiple Spindle Drill 3484_21 SCM FM29 Professional Boring Machine:

Technical Data:

Number of spindles: 29 independent heads.
Maximum width between end spindles 896 mm.
Distance (axis) between two spindles: 32 mm.
Spindle length for horizontal drilling: 60 mm.
Spindle diameter: 5, 6, 8 and 10 mm.
Dimensions of the work table: 1120 x 780 mm.
Vertical drilling depth (maximum): 100 mm.
Maximum drilling depth (horizontal): 60 mm.
Automatically drills at an angle of up to 90 degrees.
Spindle rotation speed: 2800 rpm.
Engine power: 3 KW (4 HP).
Working pressure of the pneumatic system, which is used to clamp the material: from 6 to 8 atmospheres.
Machine weight: 690 Kg.
Used, repaired, imported from Italy.

Multiple Spindle Drill 3484_21 is located in Mačvanska Mitrovica, Žarka Vucinića street 32 b (part of the city of Sremska Mitrovica), Serbia. The machine is in good condition and can be tested in operation. Transportation of the machine is carried out at the client’s expense, and after purchasing from our company, the multi-spindle drill will be loaded onto the client’s vehicle free of charge. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. Machines are mostly Italian made, iron cast. We offer complete lines for the production of wooden boxes of the Corali brand. Comprehensive production line for: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
