Panel Saw SCM 3014_20.

The welded steel frame guarantees exceptional rigidity. This material ensures stability and high cutting quality. Two guides securely attach the support to the bed. A cylindrical guide rail maintains a perfectly flat surface. A straight guide maintains the consistent straightness of each cut.

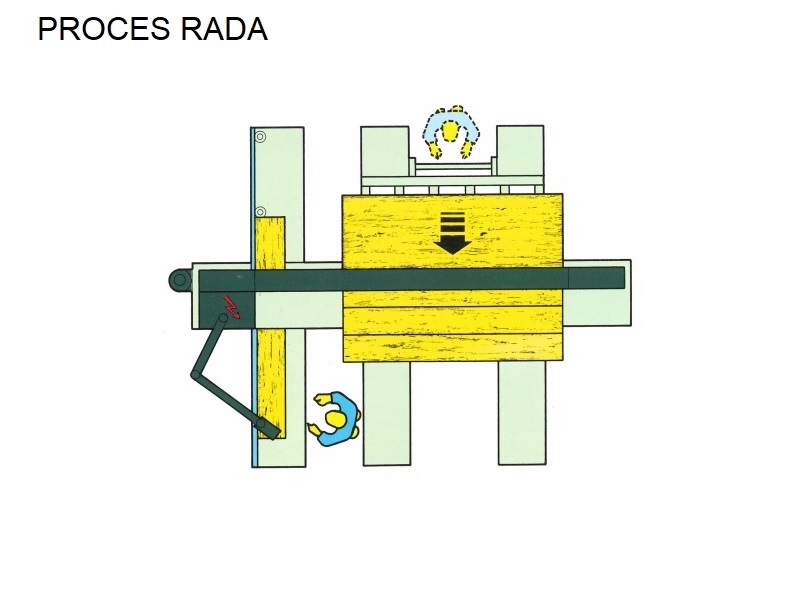

Additionally, a robust torsion shaft connects the beam’s rack and pinion transmission. This system effectively synchronizes the movement of the work table, ensuring uniform pressure across the entire line. A powerful pusher automatically makes precise longitudinal cuts.

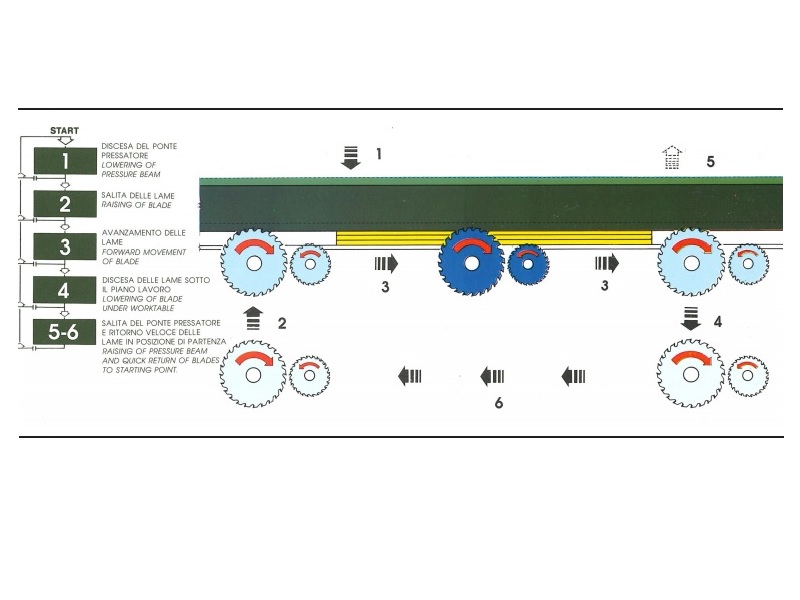

Gears then transmit torque for perfect parallelism. A hydraulic variator smoothly changes the blade feed speed. The operator manually adjusts the parameters to suit the specific material. Adjustment ranges from 0.2 to 3 meters. Finally, the carriage returns to the starting point as quickly as possible.

Panel Saw SCM 3014_20

1Panel Saw SCM 3014_20 – technical specifications:

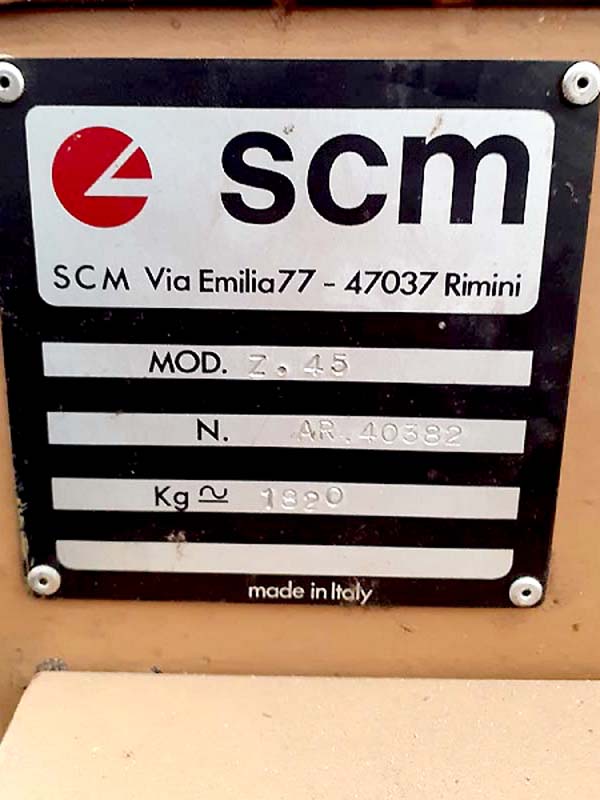

Brand: SCM, model Z.45.
Motor power: 10 hp
Saw blade speed: 3700 rpm.
Maximum cutting length: 4540 mm.
Maximum cutting depth (with a 350 mm diameter saw blade): 90 mm.
Cutting capacity with a manual pusher: 1300 m.
Cutting capacity with a heavy-duty pusher: 2100 m.
Pusher speed: slow 0.2 m/min or fast 3 m/min.
Main saw blade dimensions: 350 x 30 mm diameter (shaft).
Pre-cutter diameter: 150 mm.
Cutter motor power: 1.5 hp.
Pre-cutter speed: 8000 rpm.
Dust extraction capacity: 1200 m³/h per output.
Total weight: approximately 2500 kg.
Used, imported from Italy.

The 3014_20 format saw is located at: Mačvanska Mitrovica, Žarka Vučinića Street 32B (part of Sremska Mitrovica), Serbia. The machine is in very good condition, and you can test it in operation. Transportation is at the customer’s expense, and this sanding material will be loaded onto the customer’s vehicle free of charge after purchase from our company. “Apocalypse” LLC has over 2,500 used and refurbished machines in stock. You can inspect and test all machines in our workshops. Most of our machines are made in Italy from cast steel. We offer complete lines for the production of Corali wooden boxes. Complete lines for the production of furniture, pellets, pallets, wooden doors and windows, and parquet flooring.
