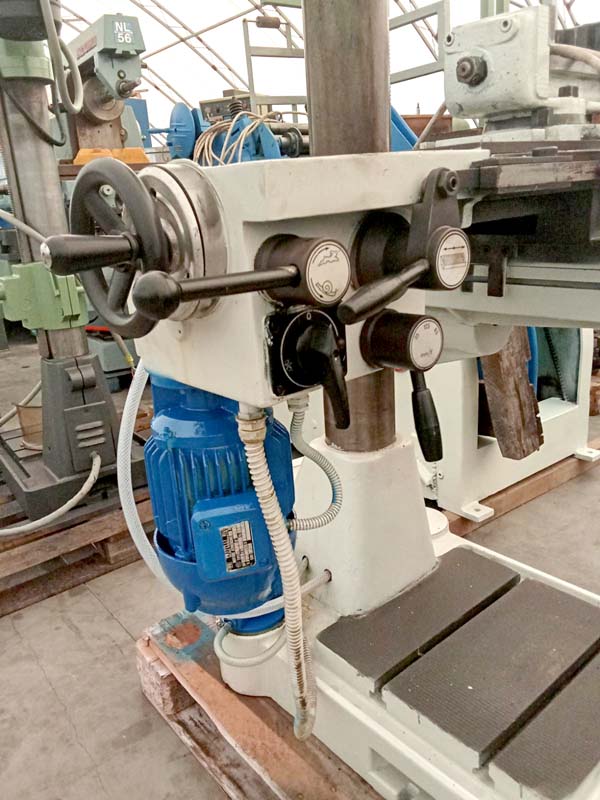

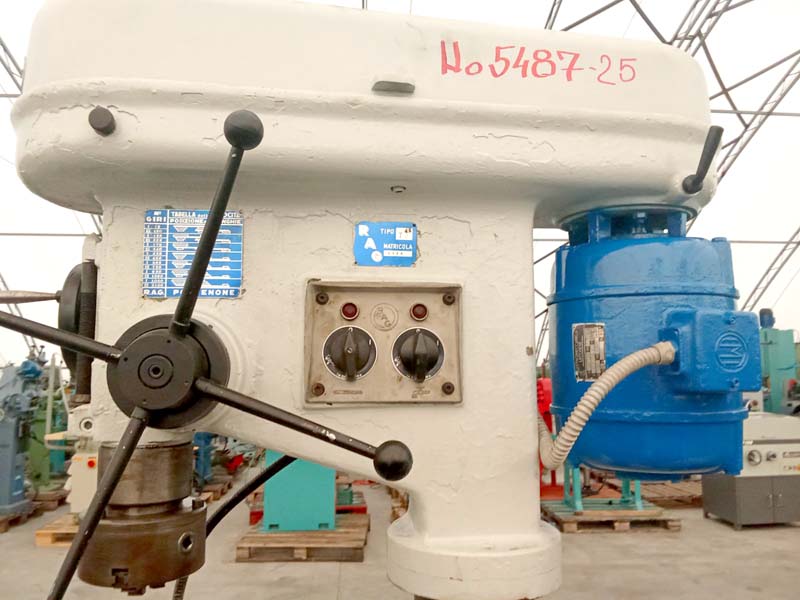

Pillar drill RAG 5487_25

Pillar drill RAG 5487_25
Drill for metal, made of cast steel.
Drilling steel R 50: 40 mm.

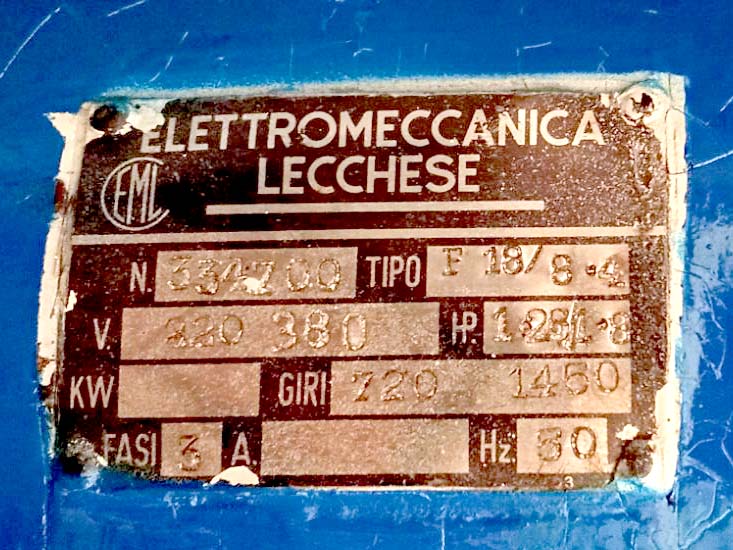

Engine power (two speeds): 1.2 or 1.8 HP, speed 720 or 1450 rpm.

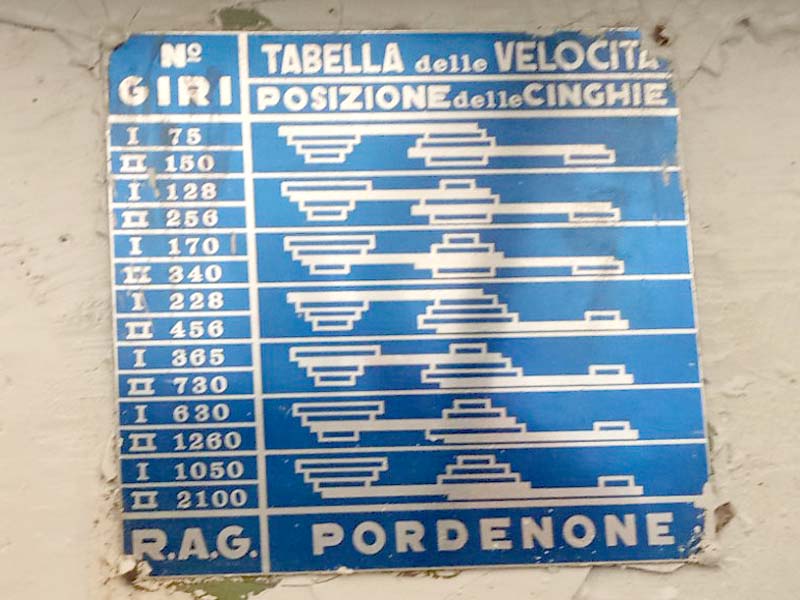

Two speeds, 7 drilling positions (14 levels): from 75 to 2100 rpm.
Spindle axis taper: MK 4.
Spindle quill diameter: 72 mm
Fast movement of the spindle quill: 2,700 mm/min.
Pinole stroke of the threading spindle: 90 mm.

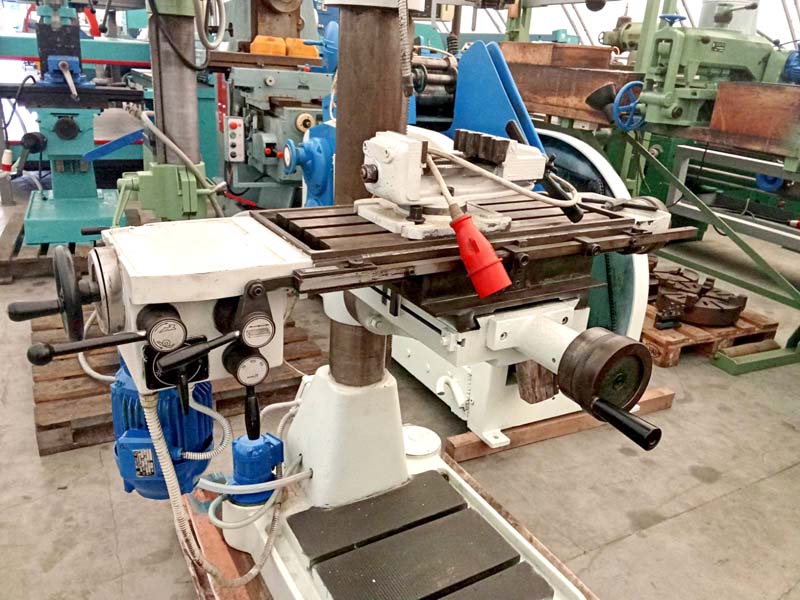

Dimensions of the work table:
– working surface: 255 x 800 mm.
– longitudinal stroke: 585 mm.
– transverse stroke: 240 mm.
T-grooves: 3, center distance: 80 mm.
T-groove width: 14 mm.
Brand: FAMUP, model RAG 45.
Used, imported from Italy.

Pillar drill RAG 5487_25

1 of 8

Pillar drill RAG 5487_25 is located in Mačvanska Mitrovica, Street Žarka Vučinića 32B (part of the city of Sremska Mitrovica), Serbia. The machine is in excellent condition and can be tested in operation. Transport is at the client’s expense, and this metal drilling machine will be loaded into the client’s transport vehicle free of charge, after the purchase in our company. Apokalipsa d.o.o. has over 2,500 used, refurbished machines in stock. You can see and try all the machines in the halls of the company. The machines are mostly Italian-made, cast. We offer complete lines for the production of wooden crates of the Corali brand. Complete line for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
