Chisel Mortiser 1135

Chisel mortiser 1135 represents a professional vertical drill for square holes. The Italian company Framar produces this high-quality machine. They specialize in door and window openings since 1966. This model serves the furniture industry and craft workshops perfectly. It ensures precise wood processing for every project. The machine combines chainsaw speed with chisel precision. Users achieve clean and dimensionally accurate wood boring easily.

Primarily, artisans use it for mortise and tenon joints. It works great for door frames and balcony elements. The working head slides on hardened round bars safely. Self-lubricating bushings ensure long-term stability and accuracy. This Chisel mortiser 1135 performs one main operation efficiently. It utilizes a powerful router for every task. The engine provides 3 HP or 2.2 KW power.

The vertical stroke reaches 150 mm during operation. It offers a useful stroke of 110 mm. The longitudinal stroke covers 275 mm of distance. The working head moves 120 mm across the table. The work table moves vertically up to 250 mm. This machine handles a maximum door width of 1000 mm. Operators clamp the workpiece manually for extra safety. They also lower and move the head by hand.
The machine requires a working pressure of 6 bar. Its total dimensions are 800 x 700 x 1800 mm. This FRAMAR MB1 model weighs cca 390 kg. We imported this used machine directly from Italy.

1Chisel Mortiser 1135 – Technical data:

He does one operation, using a router.
Engine power: 3 HP (2.2 KW).
Vertical stroke: 150 mm (useful 110 mm).
Longitudinal stroke: 275 mm.
Cross travel of the working head: 120 mm.
Vertical stroke of the work table: 250 mm.
Maximum door width: 1000 mm.
Manual clamping of the workpiece.
Manual lowering and moving.
Working pressure: 6 bar.
Total dimensions (LxWxH): 800 x 700 x 1800 mm.
Brand: FRAMAR, model MB1.
Weight: 390 Kg.
Used, imported from Italy.

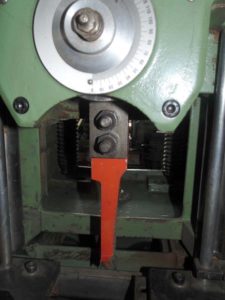

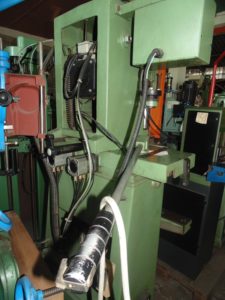

Keten frezer 1135

1 of 2

Chisel mortiser 1135 is located in Mačvanska Mitrovica, street Žarka Vučinića 32B (part of the city of Sremska Mitrovica), Serbia. The machine remains in very good condition for testing. We offer free loading into your vehicle after purchase. Our team provides complete lines for furniture production. Transport is at the customer’s expense, and this door hole cutter will be loaded into the customer’s vehicle free of charge, after the purchase has been made in our company. “Apocalypse” LLC has over 2,500 used, refurbished machines in stock. You can see and try all the machines in the halls of the company. We mostly offer Italian-made cast iron machines today. We offer complete lines for the production of wooden crates of the Corali brand. Complete line for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet.
