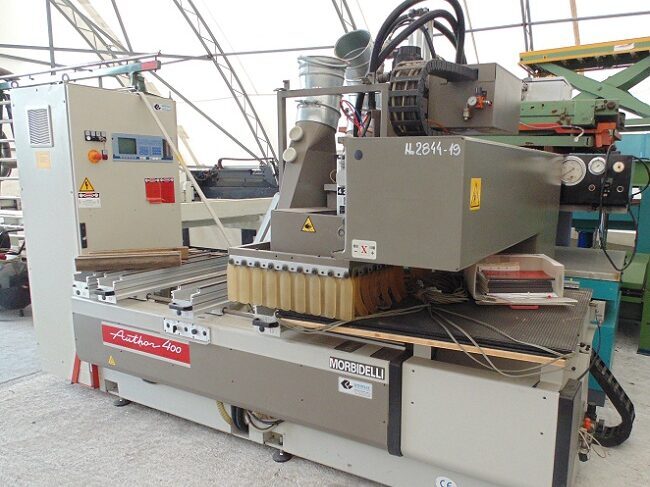

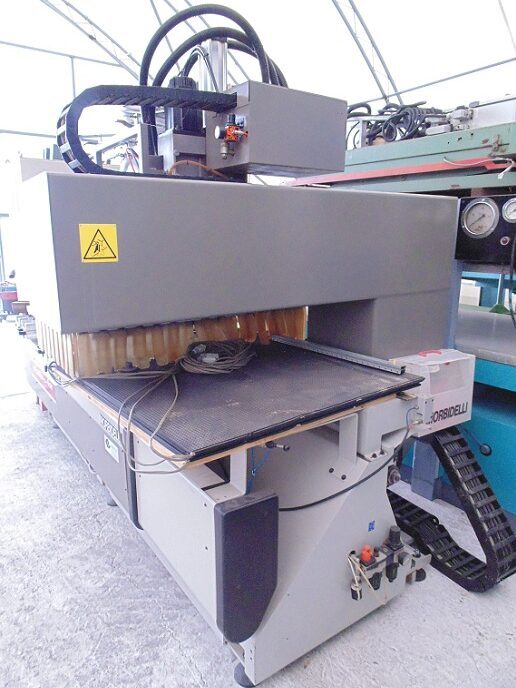

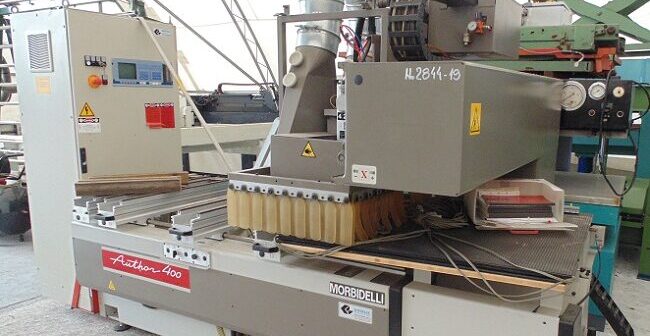

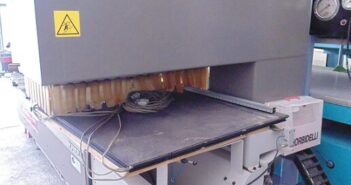

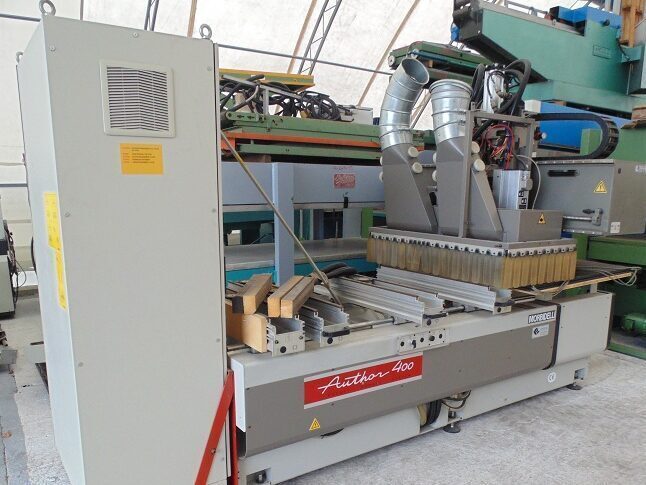

CNC Router Morbidelli
travelling way X-axis: 2100 mm.
travelling way Y-axis: 1470 mm.
travelling way Z-axis: 200 mm.
path-feed rate max. X-axis: 50 m/min.
path-feed rate max. Y-axis: 45 m/min.
path-feed rate max. Z-axis: 22,5 m/min.
vacuum pump: 40 cbm/h.
drilling head vertical x-axis: 5 piece.
drilling head vertical y-axis: 5 piece.
drilling head horizontal x-axis: 2 piece.
drilling head horizontal y-axis: 2 piece.
saw unit: yes (in X).
CNC Router Morbidelli – total power approx: 18,5 KW.
setting measure approx (l x w x h): 5500 x 3600 x 2700 mm.
weight approx.: 2500 kg.
Brand: Morbideli, Model AU 400.
Year: 1998.
Serial No: AL/4285
Used, imported fom Italy.
