Edgebander CAMAL 2471-19

Edgebander CAMAL 2471-19.
Automatic edge banding machine for straight line processing.
Tape thickness: From 0.4 mm to 2.0 mm.
Panel thickness: Minimum 10 mm, maximum 45 to 60 mm (depending on top pressure setting).
Moving speed: from 10 to 12 meters per minute (mt/min.).
Model: Alpha 2.2.

Edgebander CAMAL 2471-19 – Aggregates (Working units):

Glue pot with preheating.
Guillotine for cutting tape from a roll.
Head cutting unit (kapas).
Longitudinal milling unit (upper and lower edge processing).
Power supply: Three-phase (380V / 50Hz).
Note that the engine mounts and milling cutters are of standard dimensions for Italian machines of the era, so spare parts can be found at distributors that carry equipment for SCM or Casadei machines.

Edgebander CAMAL Alpha 2.2 is a compact machine, for small and medium workshops.
Length: approx. 2200 mm, including work table and tape roll holder.
Width (depth): approx. 800 mm to 1000 mm (with extended support arms for wide panels).
Height: about 1500 mm (to the top of the protective hood / control panel).
Weight: The machine weighs around 600 kg.
Year of manufacture: 2006.
Used, imported from Italy.

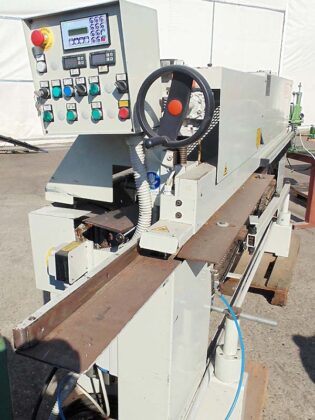

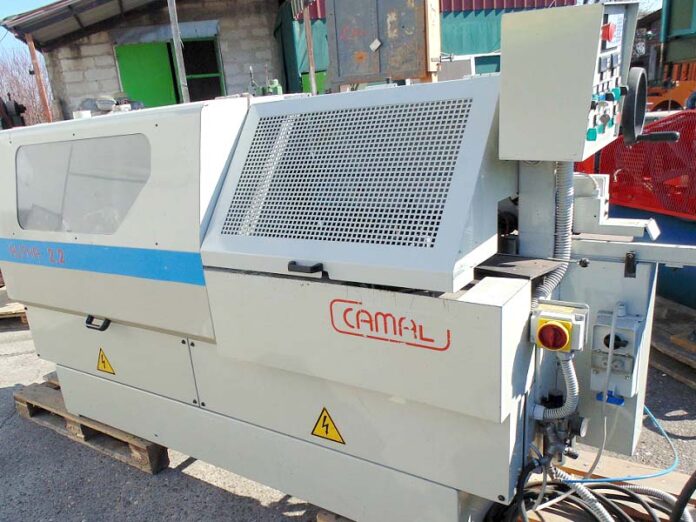

Edgebander CAMAL 2471-19

1 of 4

Edgebander CAMAL 2471-19 is located in Mačvanska Mitrovica, Žarka Vucinića street 32 b (part of the city of Sremska Mitrovica), Serbia. The machine is in very good condition and you can test it in operation. Transportation of the machine is carried out at the client’s expense, and after purchasing from our company, the edge processing machine will be loaded onto the client’s vehicle free of charge. “Apocalypse” LLC has over 2,500 used machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden crates of the Corali brand. «Apocalypse» LLC offers you complete lines for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet. Be our guests, and let’s work together for mutual benefit.
