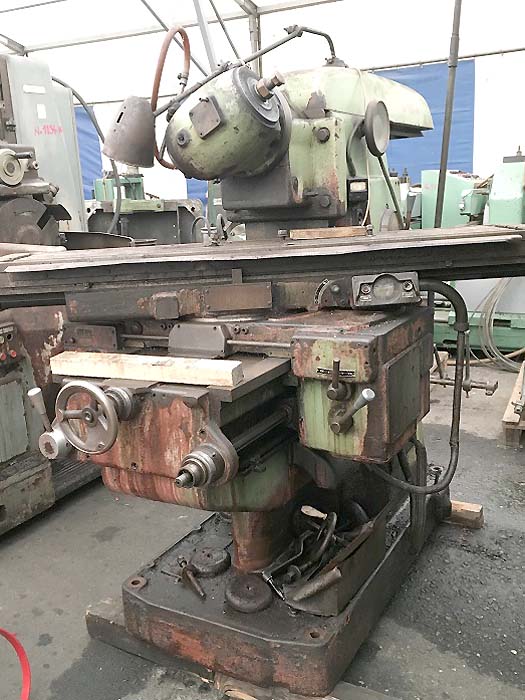

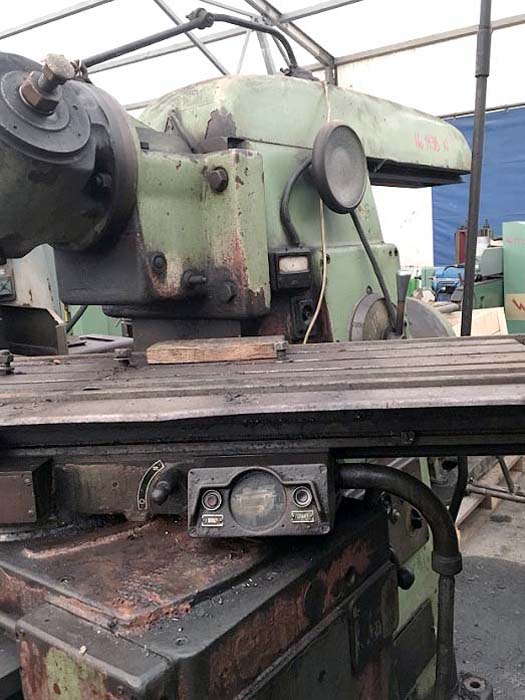

Milling machine TOS 1138_16

The machine is known for its stability and strength, and specifications usually include:
The dimensions of the work table are standard 1600 x 350 mm.
The table can be rotated at an angle of ±45°.

Walk along axes (X, Y, Z):

X axis (longitudinal): 1000 mm.
Y axis (transverse): 300 mm.
Z axis (vertical): 425 mm.
Spindle: Uses an ISO 50 chuck, which allows working with large diameter tools.
The spindle speed ranges from 32 to 1400 rpm.
The main engine has a power of 9.5 kW, which makes it suitable for demanding operations.
The total weight of the machine is approximately 2840 kg.

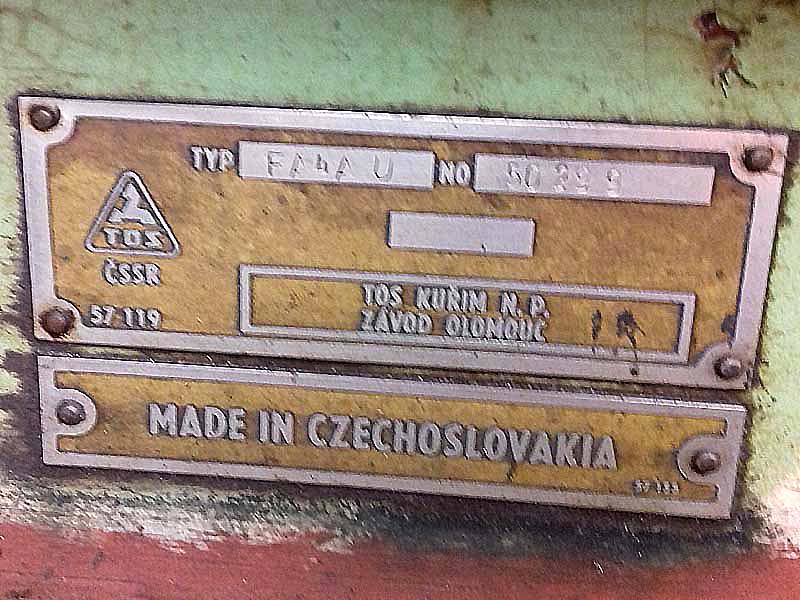

Brand: TOS, model FA4A-U.

Key benefits and functionality:

Universality: The “U” model features a rotary table and a removable vertical head for flexible horizontal milling.
Consequently, this versatile design allows operators to perform complex machining tasks on a single robust machine.
Precision and rigidity: The massive cast iron base ensures high precision and damps vibrations during deep metal cutting operations. Furthermore, this heavy construction maintains stability when the machine handles very large or demanding work pieces.
Feeds: Motorized feeds and rapid movements drive all three axes to improve overall workflow and production efficiency.
Additionally, the feed speeds range from 10 to 1250 millimeters per minute depending on the version.

Milling machine TOS 1138_16 is located in Mačvanska Mitrovica, Žarka Vucinića street 32 b (part of the city of Sremska Mitrovica), Serbia. The machine is in good condition and you can test it in operation. Transportation of the machine is carried out at the client’s expense, and after purchasing from our company, the universal milling moulder for metal will be loaded onto the client’s vehicle free of charge. “Apocalypse” LLC has over 2,500 used machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden crates of the Corali brand. «Apocalypse» LLC offers complete lines for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet. Be our guests, and let’s work together for mutual benefit.
