Wood notching machine 1335_17

Wood notching machine 1335_17.

Log notcher is also known as a machine for making logs or profiling logs. It is used primarily in the production of log cabins, wooden houses and massive building elements.

What is pranking?

Planing is a process of precise cutting and shaping of corner connections (cuts) on wooden beams or forms. These connections allow the logs to fit perfectly into each other at an angle (most often 90 degrees). This creates a stable, windproof and solid wall without the use of nails.

Wood notching machine 1335_17 – Working principle of the machine

The working principle is based on the precise mechanical removal of excess wood from precisely defined positions. The process takes place through the following steps:
Positioning and fixing: The workpiece (log or beam) is placed on the work table or counter of the machine. Pneumatic or mechanical clamps firmly fix the wood to prevent any movement during operation.

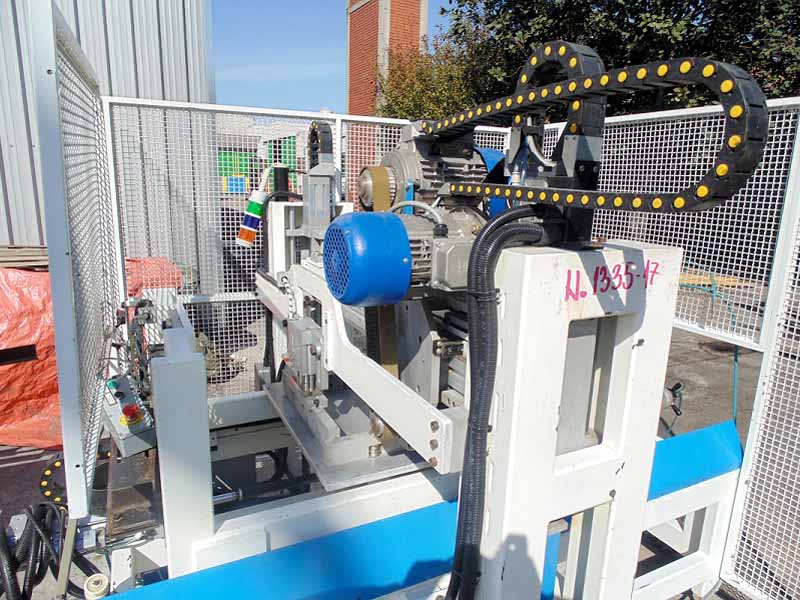

Main drive: Electric motors (like the blue motor visible in the picture) drive the high speed cutting tools.
Profiling and cutting: Specially profiled cutters or chains penetrate the wood. The machine makes vertical, horizontal or arc cuts following the given connection profile.
Cable guidance and automation: Flexible energy chains (so-called tracks, visible on the top of the machine) protect electrical cables and hoses during the movement of the cutting heads left-right or up-down.
Joint Forming: Tools simultaneously or in sequences make the male/female part of the joint, ensuring an ideal fit.

Key benefits

Exceptional precision of joints that prevents the appearance of “gaps” and the passage of air through the walls of houses.
High productivity compared to traditional, manual cutting of cherts.

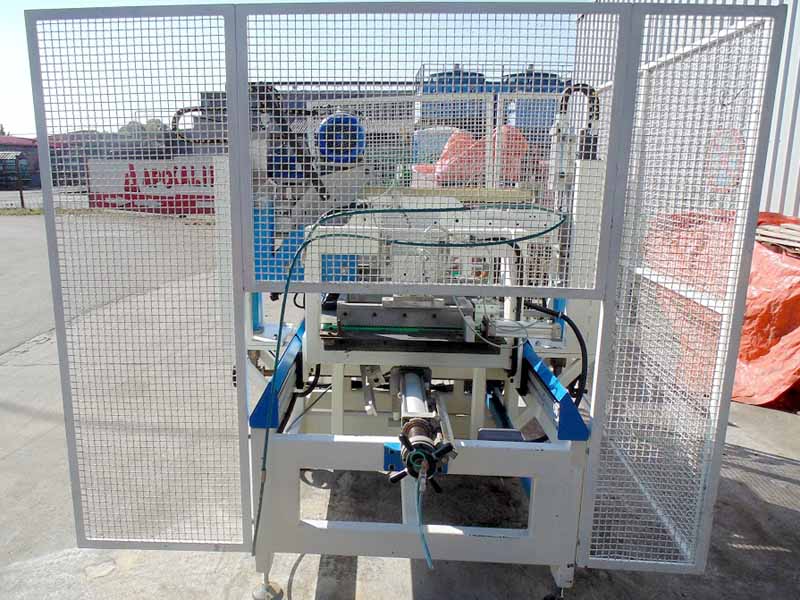

Safety at work, because the work area is usually isolated by protective nets and fences (as shown in the picture).

Engine power: 4 KW (5.5 HP), speed 2880 rpm.
Auxiliary motor: 1.1 KW, 1400 rpm (with gearbox reducer).
Used, imported from Italy.machine for making cuts in logs.

Wood notching machine 1335_17 is located in Mačvanska Mitrovica, Žarka Vucinića street 32 b (part of the city of Sremska Mitrovica), Serbia. The machine for the production of elements for log cabins is in good condition and you can test it in operation. Transportation of the machine is carried out at the client’s expense, and after purchasing from our company, the log notcher will be loaded onto the client’s vehicle free of charge. “Apocalypse” LLC has over 2,500 used machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden crates of the Corali brand. «Apocalypse» LLC offers you complete lines for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet. Be our guests, and let’s work together for mutual benefit.
