PeeWee Threading Machine.
The PEE WEE Type II/60/P12 model is a robust German cold threading machine, used for the precise production of external threads on cylindrical parts such as bolts, studs and shafts. This is a heavy-duty industrial machine, and the “P12” designation usually refers to its maximum downforce of 12 tons.
Advantages of this technology:
Unlike classic thread cutting, PEE WEE machines form a thread by pressure.
This method of thread formation brings greater strength.
The material is not cut, but its fibers are shaped, which makes the thread more resistant to fatigue and cracking.
Better surface finish – Threads are smoother and more precise.
Efficiency: The machines are ideal for mass production in the automotive and aerospace industries.
The machine is second-hand, imported from Italy.
These extremely durable machines often feature a combination of original mechanics and modern SIEMENS PLC controllers for easy adjustment, especially in refurbished models.
1PeeWee Threading Machine – Tech. Specifications (for series II/P12):
Machines from this series, like the variant II/60-P12, offer the following performances:
Rolling force: Maximum 12 tons (120 kN).
Working diameter range: from 12 mm to 50 mm.
Operation method: Supports cutting in place and pass rolling for long threads.
Thread length (by cutting): Up to about 130 – 160 mm, depending on the width of the rollers.
Thread length (by rolling): Theoretically unlimited (up to 2000 mm for standard operations).
Rotation speed: Adjustable in the range from about 18 to 115 revolutions per minute.
Roller rotation speed:
The speed depends on the type of material you are processing. The formula uses the thread diameter:
– Steel up to 60 kg/mm²: 3 x thread diameter.
– Steel up to 90 kg/mm²: 2.5 x thread diameter.
– Steel up to 120 kg/mm²: 2 x thread diameter.
– Brass, Dural, Silumin: 3.5 x thread diameter.

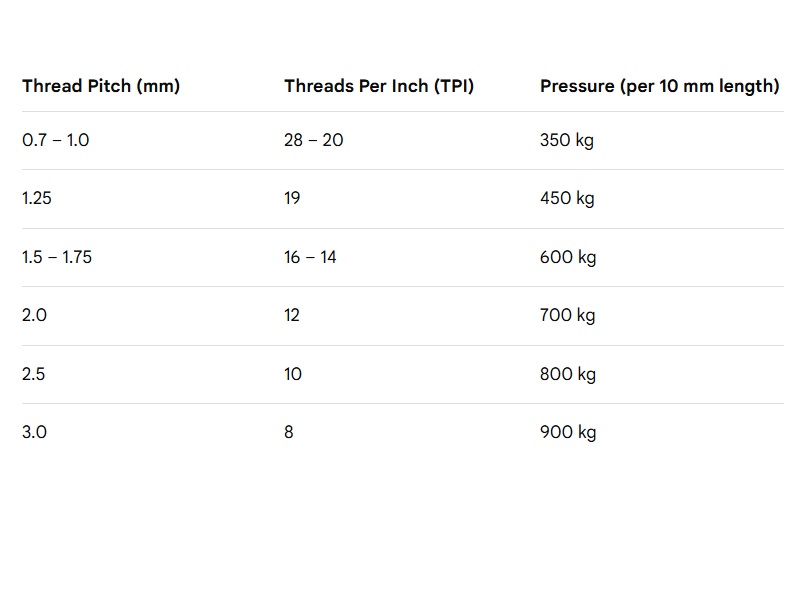

Rolling pressure:
The table shows how much pressure should be applied for every 10 mm of thread length, depending on the thread pitch:
The PeeWee threading machine is located in Mačvanska Mitrovica, Žarka Vučinića Street 32 B (part of the city of Sremska Mitrovica), Serbia. The machine is in excellent condition and you can test it in operation. Transport is at the client’s expense, and this PEEWEE press will be loaded into the client’s vehicle free of charge, after the purchase in our company. “Apocalypse” LLC has over 2,500 used machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden crates of the Corali brand. «Apocalypse» LLC offers you complete lines for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet. Be our guests, and let’s work together for mutual benefit.
