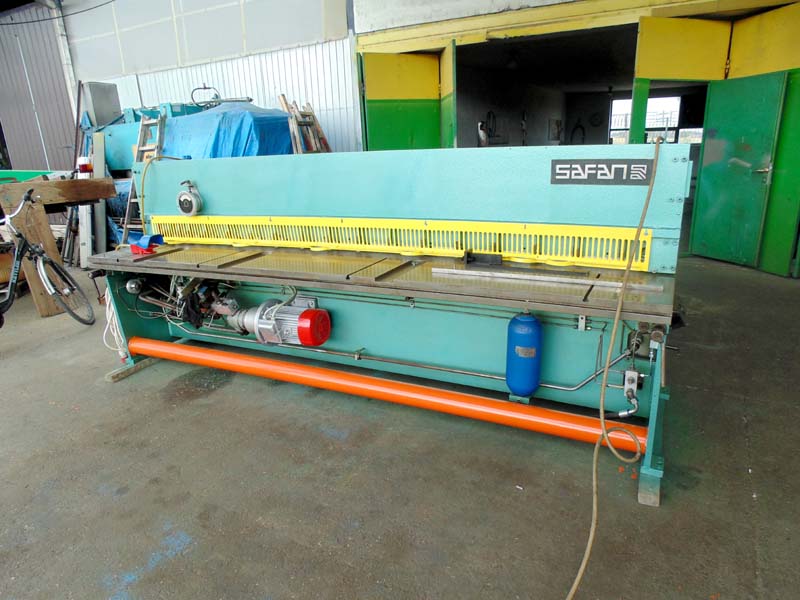

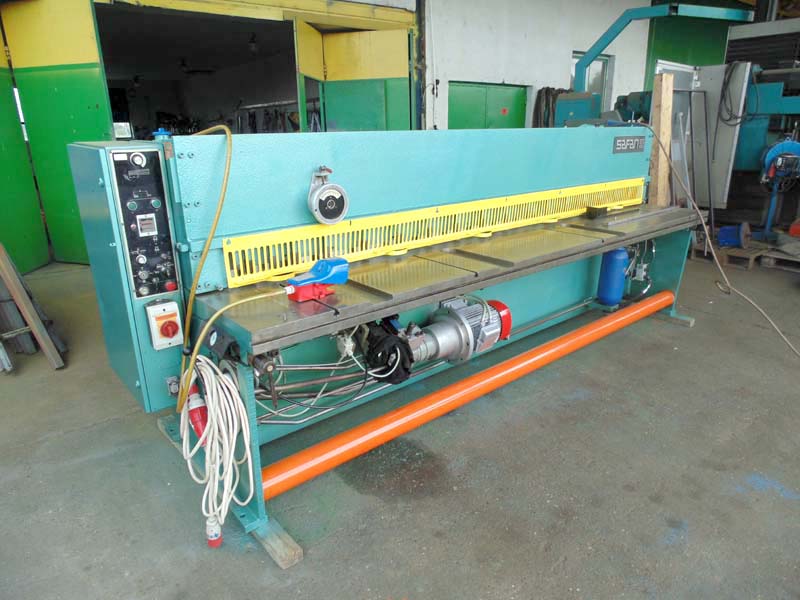

SAFAN sheet metal shears.
Sale: Hydraulic guillotine shears Safan 3100 mm.
Looking for a reliable machine for precision sheet metal cutting in your production?
These robust hydraulic shears from the Dutch brand Safan provide superior stability. The machine is in good working condition. Therefore, it is an ideal investment for any locksmith workshop.
First, the construction guarantees longevity through a pendulum cutting system without slide wear. Second, the original turquoise color confirms the factory condition of the chassis. The reliable hydraulic system ensures a straight cut without deformation of the material. That’s why with this machine you immediately improve the speed of your production.
1SAFAN sheet metal shears – Technical characteristics:
These guillotine shears have optimal dimensions for working with large formats. The useful cutting length is 3100 mm, which covers standard sheet metal panels. The width of the work table is 510 mm and provides excellent support. Thus, the operator can safely and easily manipulate heavy materials.

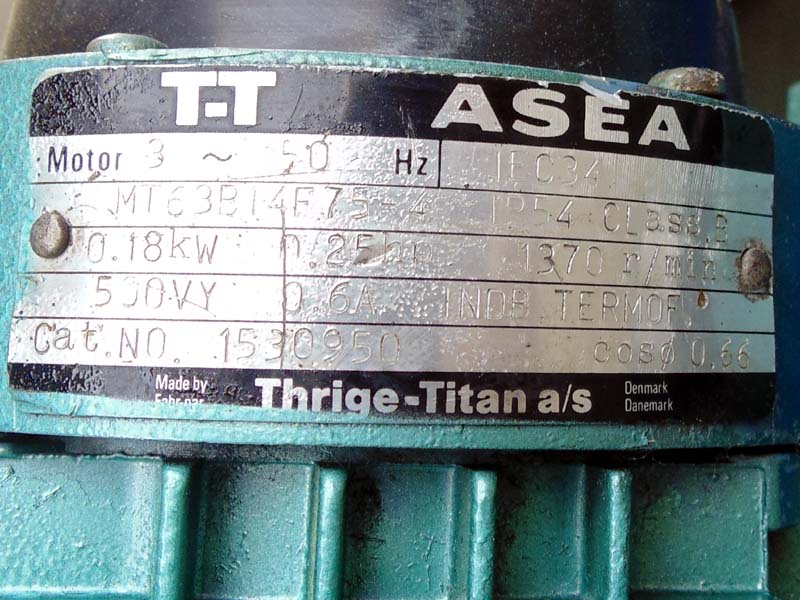

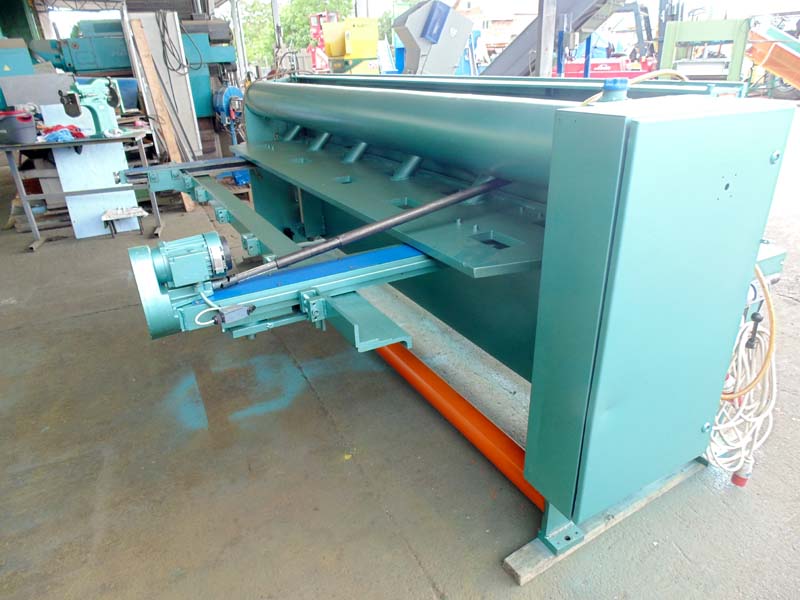

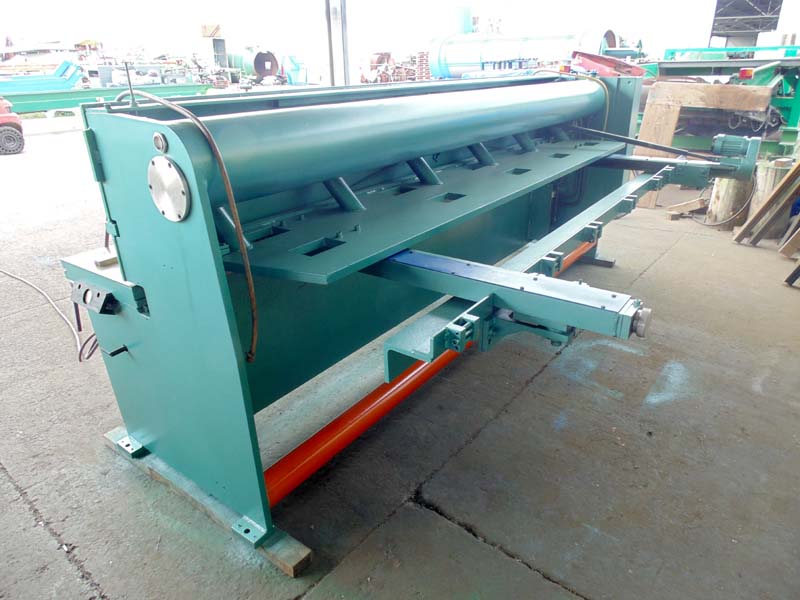

In addition, the machine has a rear extension of about 1200 mm. In this space, the motorized rear stop moves for accurate measurements. The system is powered by a quality Scandinavian ASEA / Thrige-Titan electric motor. The power of this auxiliary engine is 0.18 kW at 1370 revolutions. That is why the positioning of the sheets is extremely fast and precise to the millimeter.
Reliable drive and high productivity
The heart of this hydraulic system is powered by a modern Italian Seipee engine. This three-phase asynchronous motor was manufactured in 2015 according to CE standards. Its power is 11 kW, which enables maximum energy efficiency. The engine works in permanent operation mode under the designation S1.
Consequently, the machine consumes minimal electricity with superior cutting performance. The maximum cutting capacity covers thicknesses up to 4 mm or 6 mm for black sheet. Also, the machine successfully cuts prochromic sheets of smaller thicknesses. You adjust the blade clearances manually via the precision wheel on the front beam.
No. of Strokes/Min: 24.
Backgauge reach: 1000 mm.
Weight: 6200 kg.
Used, imported from Italy.
Maximum security and accompanying equipment

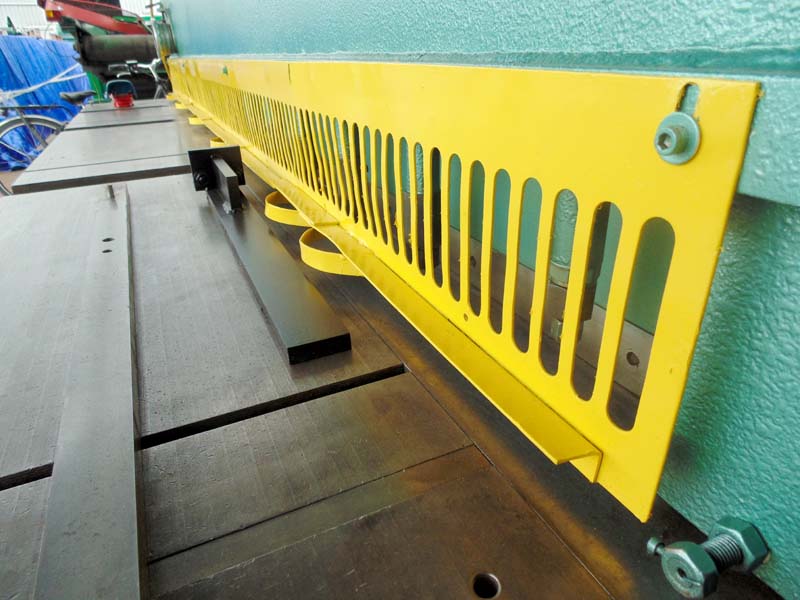

The safety of workers in the first place is ensured by the bright yellow protective grille. It allows a clear view of the cutting line during operation. Hydraulic holders inside the grate firmly fix the sheet before each lowering of the knife. In this way, the machine completely prevents material from slipping.
Additionally, the machine has a built-in longitudinal corner stop on the left side of the table. It serves for the ideal alignment of sheets at an angle of 90 degrees. Starting is done via a portable foot pedal on the floor. At the bottom there is also an orange roller for removing sheets. Finally, the control panel offers a simple selection of operating modes.
SAFAN sheet metal shears is located in Mačvanska Mitrovica, Žarka Vucinića street 32 b (part of the city of Sremska Mitrovica), Serbia. The machine is in good condition and you can test it in operation. Transportation of the machine is at the client’s expense, and after purchasing from our company, the hydraulic sheet metal guillotine will be load onto the client’s vehicle free of charge. “Apocalypse” LLC has over 2,500 used machines in stock. Machines are mostly Italian, of iron cast. We offer complete lines for the production of wooden crates of the Corali brand. «Apocalypse» LLC offers you complete lines for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet. Be our guests, and let’s work together for mutual benefit.
