Veneer peeler SIMCA 1870_1.

Purpose and Application:

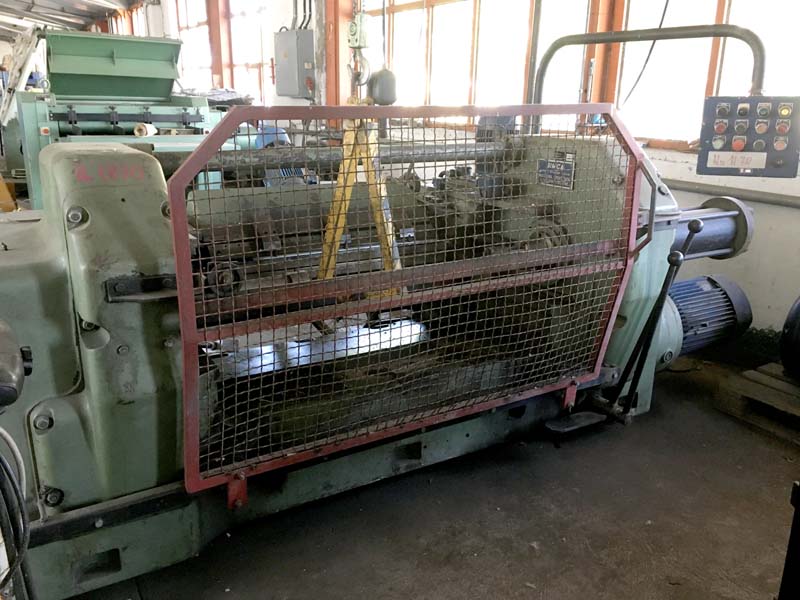

The machine in the picture officially bears the name Simca M-109 N. This model was produced in cooperation with the Italian Corali Group. It is a robust industrial machine for cutting wood veneer. It is designed for the mass production of elements for wooden packaging. It is mostly used for making fruit and vegetable crates. The operating mechanism of the machine uses the proven mechanical guillotine principle. The massive knife performs clean vertical cuts under high pressure. The system ensures precise cutting of material to the exact specified length. The process is carried out completely without generating sawdust. There is also no unnecessary waste or loss of raw material. The machine operates in primary wood processing plants. It serves for the fast production of crate side panels and bottoms. It successfully cuts thin layers of peeled veneer of various wood species.

Veneer peeler SIMCA 1870_1

Veneer peeler SIMCA 1870_1 *** Technical Specifications:

Parameter Technical Specification / Data

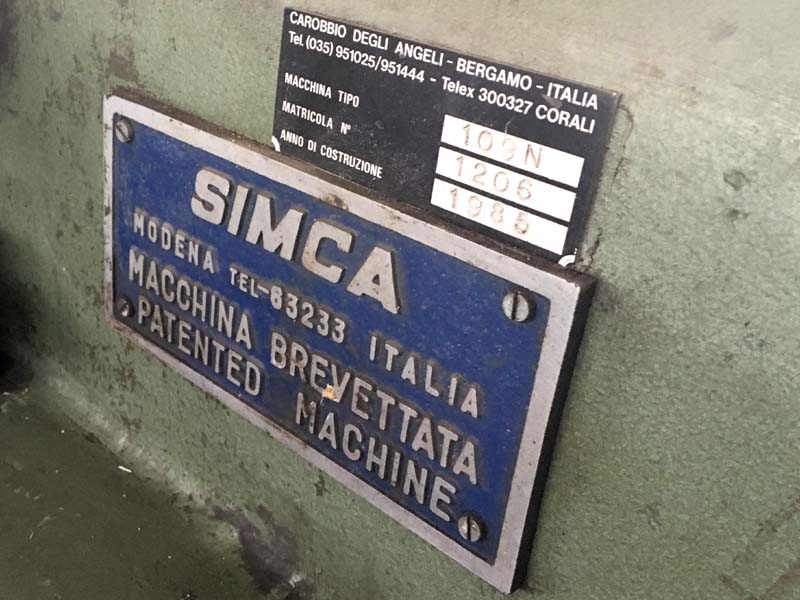

Manufacturer SIMCA / CORALI (Carobbio degli Angeli, Bergamo, Italy)
Model (Macchina Tipo) M-109 N (Standard version)
Year of manufacture (Anno di Costruzione) 1985.
Serial number (Matricola N°) 1206
Operating principle Guillotine / mechanical knife for precise cutting of veneer to the specified length (no sawdust waste)
Maximum cutting width (knife length) Up to 1000 mm (depending on the exact guide setup)
Wood processing thickness From 0.8 mm to maximum 6 mm (thin wooden laminated boards/veneer for crates)

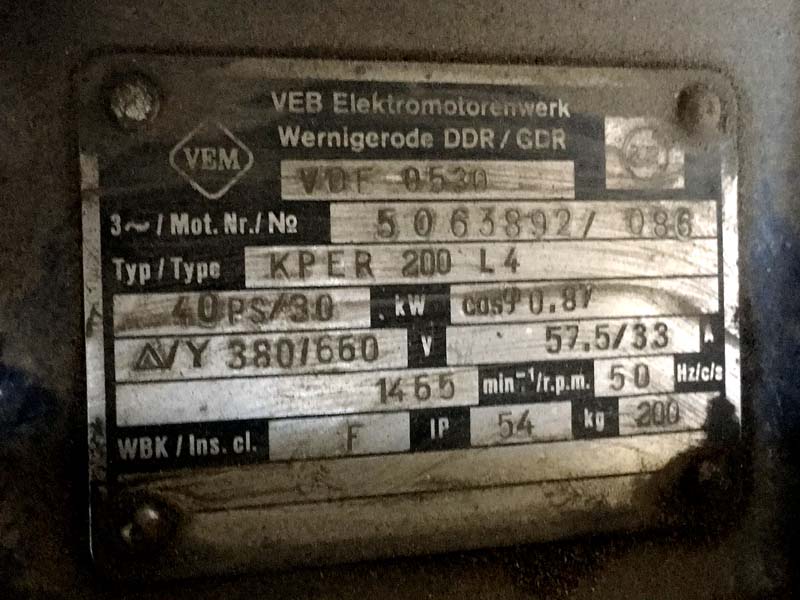

Electric motor power Approx. 3 kW to 4 kW (mechanical eccentric drive)
Operating speed / Capacity Up to 120 to 150 cuts per minute in continuous operation
Stroke system Vertical cut with automatic pulling and a system of rollers for material feeding
Machine weight Approx. 1100 kg to 1300 kg (massive cast construction due to cutting pressure)
Patent status Macchina Brevettata (Patented transmission and cutting mechanism)

Conclusion and Summary:

The Simca M-109 N model represents a superb example of durable Italian machine building. Although manufactured in 1985, this machine still holds great utility value today. The cast iron construction guarantees exceptional stability during operation. The low breakdown rate ensures high profits for any plant owner. Mechanical power transmission requires minimal regular maintenance costs. Therefore, it is highly economical for long-term industrial operation. Thanks to its high operating speed, it significantly boosts overall productivity. This guillotine efficiently solves the problem of rapid material preparation. It represents a key part of the packaging assembly line. The patented machine designation guarantees original technical solutions from the manufacturer. Today, these models are frequently sought after in the used industrial machinery market. Their reliability justifies the investment in modern crate production.

Machine tech data

The veneer clipper SIMCA 1870-1 is located in Macvanska Mitrovica, 32B Zarka Vucinica Street (part of the city of Sremska Mitrovica), Serbia. The machine is in good condition and you can test it in operation. Transportation of the machine is carried out at the client’s expense, and after purchasing from our company, the wood peeling machine will be loaded onto the client’s vehicle free of charge. “Apocalypse” LLC has over 2,500 used machines in stock. Machines are mostly Italian made, of iron cast. We offer complete lines for the production of wooden crates of the Corali brand. «Apocalypse» LLC offers you complete lines for the production of: furniture, pellets, pallets, wooden doors and windows, as well as parquet. Be our guests, and let’s work together for mutual benefit.
